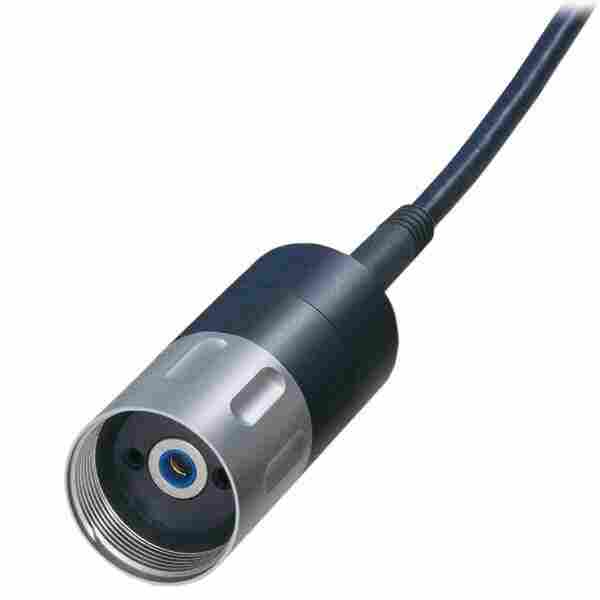

Connection cables for IQ sensors
SACIQ connecting cable, a cable for all sensors. For data transfer and power supply. In combination with sensor waterproof up to 100 m
One cable for data transfer and power supply
One connector for all sensors
Available as regular or sea water edition
The IQ Sensor Net sensor connecting cable SACIQ is used for power supply and data transfer. Another cable is redundant. The uniform connector makes only one cable necessary for all sensors. The sensor can be installed or removed via an easy screw connection. The connection is waterproof up to 100 m when connected to the sensor. Another plus is the integrated lightning protection of the IQ SENSOR NET, which the cable is part of.
Variations
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| SACIQ-1,5 | Sensor connecting cable for all IQ sensors, with waterproof plug/screw sensor connection (IP 68), 1.5 m | 480040 | |||
| SACIQ-SO SW | Sensor connecting cable as sea water model, length freely selectable up to max. 100 m | 480064V | |||
| SACIQ-15,0 | Sensor connecting cable 15 m | 480044 | |||
| SACIQ-7,0 | Sensor connecting cable, 7 m | 480042 | |||
| SACIQ-25,0 SW | Sensor connecting cable as sea water model, 25 m | 480066 | |||
| SACIQ-50,0 SW | Sensor connecting cable as sea water model, 50 m | 480060 | |||
| SACIQ-SO | Sensor connecting cable, length freely selectable up to max. 100 m | 480041V | |||
| SACIQ-20,0 SW | Sensor connecting cable for all IQ sensor, as sea water model, with waterproof plug/screw sensor connection IP 68, 20 m | 480045 | |||
Technical Data
| Temperatur range | - 35 °C ... + 80 °C |
| Cable lengths | 1.5 m, 7 m, 15 m, 20 m, 25 m, 50 m, 75 m, 100 m, special lengths |
| Pressure range | 106 Pa (10 bar) (cable connected to sensor) |
| Material connector | Normal model: Stainless steel 1.4571, POM Sea water model: Titanium Grade 2, POM |
Matching and supplemental products
Digital optical IQ dissolved oxygen sensors
Digital electro-chemical IQ oxygen sensors
Digital IQ pH /ORP fittings
Replacement fittings
Digital IQ conductivity measuring cell for wastewater treatment plants
Digital IQ turbidity sensors
Digital IQ suspended solids sensors
Digital ISE IQ combination sensors for ammonium and nitrate
Digital ISE IQ sensors for ammonium
Digital ISE IQ sensors for nitrate
Digital optical IQ spectral probes (UV-VIS) for nitrate and suspended solids
Digital optical IQ spectral probes (UV-VIS) for nitrate and CSB/TOC/DOC/BSB/SAC and UVT254
Digital optical IQ UV probes for nitrite, nitrate, CSB/BSB/DOC/SAC and UVT254
Digital optical IQ spectral probes (UV-VIS) for CSB/TOC/DOC/BSB/SAC/suspended solids and UVT254
Digital optical IQ UV probes for nitrite and nitrate
Digitale Ultrasound sensors for sludge level
IQSN 2020 XT monitors/modules
IQSN 2020 XT Controller (without terminal)
IQSN system 282/284 monitor for up to 4 digital IQ sensors
Accessories
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| SACIQ Plug | Screw protective cap for all SACIQ sensor connecting cable | 480065 | |||
