Single parameter system CL 298/P
CL 298/P - single parameter system ready to operate to measure free or total chlorine, environmentally friendly, sanitary and reliable
sanitary and well-structured – premounted on specially coated panel
environmentally friendly - no use of chemicals
reliable - membrane protects from contamination of electrodes

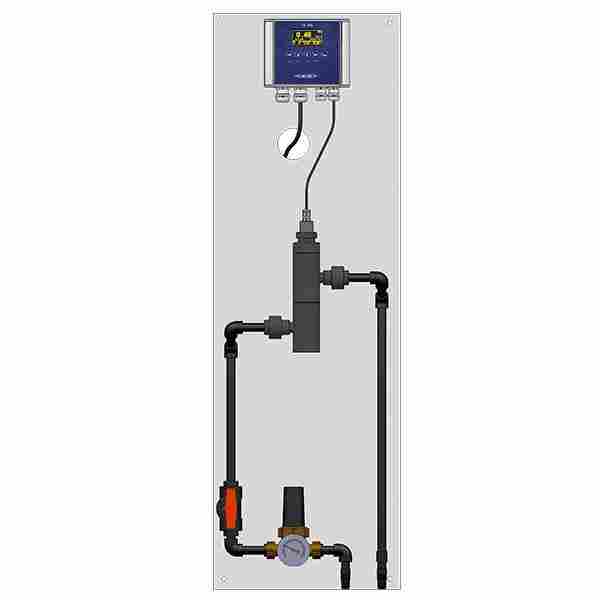

The drinking water panel CL 298/P is a system that is ready to operate, with monitor Cl 298, integrated PID regulator, premounted piping and special freely selectable probes to measure free and total chlorine. Therefore, nothing is stopping you from measuring drinking water or pool water.
Variations
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| CL 298/P - 230 VAC | Ready to operate measuring panel to measure free or total chlorine, analog monitor 2 current outputs and MODBUS interface, with automatic temperature compensation (Pt1000), 230 VAC | 801260 | |||
| CL 298/P Flow - 230 VAC | Like the CL 298/P, but with FlowControl to monitor the flow volume | 801261 | |||
Technical Data
| Panel | |
| Conditions of use TCML N | 0 … 45 °C, 4 … 12 pH |
| Conditions of use FCML 412 N | 0 … 45 °C, 4 … 9 pH |
| Temperatur compensation | -10 °C ... +130 °C |
| Sensors | |
| Conditions of use FCML 68 | 0 … 45 °C, 6 … 8 pH |
| Material | PVC hard foam, foamed, white |
| Measuring range FCML 412 N | 0.00 … 2.00 mg/l |
| Monitor | |
| Dimensions | 1100 mm x 350 mm x 13 mm (HxWxD) |
| Temperature measurement | Pt1000 (integrated in sensor) |
| Dimensions | 160 x 130 x 70 mm (WxHxD) |
| Housing | Aluminium housing for wall mounting, protection IP 65 |
| Measuring range TCML N | 0.00 … 2.00 mg/l |
| Power supply | 100 … 240 V AC or 18 … 36 V DC |
| Analog outputs | 2 x 0(4) … 20 mA 2 x Relays |
| Measuring range FCML 68 | 0.00 … 2.00 mg/l |
Matching and supplemental products
TURB 2000
TURB 2020
TURB 2100
TURB 2110
TURB 2120
Chlorine 3000
MULTILINE 1000
Accessories
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| ZBK-FCML 68 | Maintenance set for chlorine sensor FCML 68: 100 ml electrolyte, 1 replacement cap | 205248 | |||
| FCML 68 | Chlorine electrode (1 m cable) as per the electro-chemical principle, suitable for measurements of free chlorine in drinking water and pool water. Measuring range: 0–2 mg/l, pH range 6–8 | 201195 | |||
| ZBK-TCML N | Maintenance set for chlorine sensor TCML N: 100 ml elekcrolyte, 1 replacement cap | 205245 | |||
| ZBK-FCML 412 N | Maintenance set for chlorine sensor FCML 412 N: 100 ml electrolyte, 1 replacement cap | 205246 | |||
| FCML 412 N | pH-Wert independent chlorine electrode (1 m cable) as per the electro-chemical principle, suitable measurement of free clorine in drinking water and pool water. Measuring range: 0-2 mg/l, pH range 4–9 | 201187 | |||
| TCML N | Chlorine electrode (1 m cable) as per the electro-chemical principle, suitable for measurements of total chlorine in drinking water and pool water. Measuring range: 0-2 mg/l | 201192 | |||
Downloads
