晶信仪器高价回购维修无线测试仪IQ2010

                                       晶信仪器高价回购维修无线测试仪IQ2010

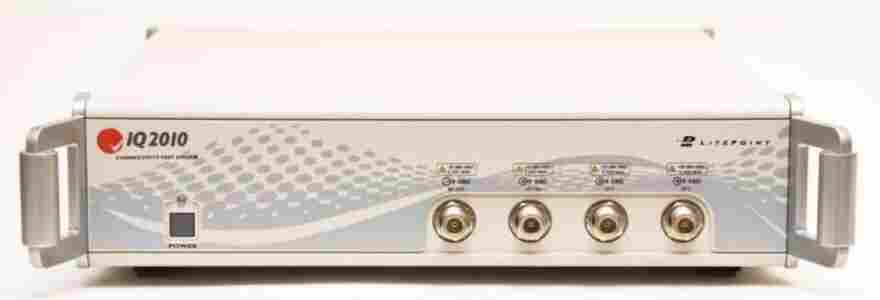

仪器名称: 无线连接测试仪IQ2010 Wi-Fi＋蓝牙＋GPS

仪器型号: IQ2010

仪器: LITEPOINT

仪器指标: Bluetooth, Classic (1.x, 2.x, 3.0) and Low Energy (4.0, 4.1)

主要选件

Frequency Range:

• Bluetooth: 2.4 to 2.5 GHz
• FM: 76 to 108 MHz
• GPS: 1.57542 GHz (L1)
• WLAN: 2.4 to 2.5 GHz, 4.9 to 6.0 GHz
• WiMAX: 2.3 to 2.7 GHz, 3.3 to 3.8 GHz, 4.9 to 6.0 GHz

Input Power Range:

• FM: +10 dBm to -40 dBm
• WLAN: +30 dBm to -148 dBm/Hz
• WiMAX: +30 dBm to -148 dBm/Hz

Output Power Range:

• FM: -60 dBm to -110 dBm
• GPS: -60 dBm to -145 dBm
• WLAN: +10 dBm to -95 dBm
• WiMAX: +10 dBm to -95 dBm

Supported Technologies:

• WLAN
• Bluetooth
• MIMO
• FM
• GPS
• WiMAX
