PX4100-10KGV

通用服务传感器
PX4100
CE
通用服务传感器
Latest Strain Gage Technology
Stainless Steel Body
IP65 Sealed Case
Excellent Stability and Accuracy
DIN Connector Included

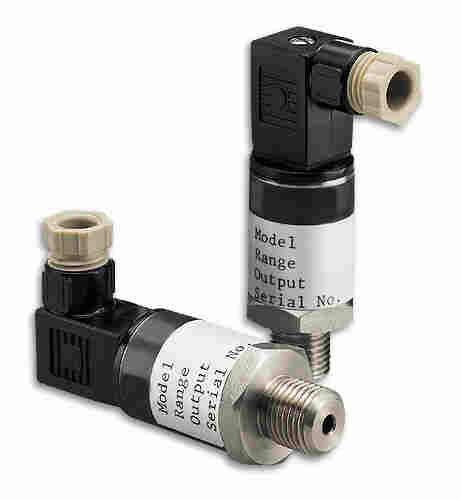

OMEGA’s PX4100 Series Transducers have been designed for general purpose applications where the reliability of all stainless steel is required. Using the latest strain gage technology provides a rugged, compact transducer with excellent stability and accuracy.
SPECIFICATIONS
Excitation: 10 Vdc @ 10 mA (15 Vdc max) reverse polarity protected
Output: 20 mV (±1%) Ratiometric
Accuracy: ±0.25% FS includes linearity, and hysteresis
Repeatability: ±0.1% FS
Zero Offset: ±1% FS
Long Term Stability: ± 0.2% FS/6 mo. Compensated/Operating Temperature: -20 to 80°C (-4 to 176°F)
Storage Temperature: -40 to 90°C (-40 to 194°F)
Thermal Zero Effect: <±0.08% FS/°C
Thermal Span Effect: <±0.04% FS/°C
Maximum Overpressure: 200% FS
Vibration: 10 g to 50 Hz
Shock: 15 g @ (11 mS)
Humidity: 95% RH (non-Cond)
Wetted Parts: 17-4 SS
Case: IP65 Sealed, 300 Series Stainless Steel,
Pressure Port: ?" NPT male
Electrical Connection: Socket to Din 43650 and Micro-DIN plug (included)
Response Time: 10 ms
Weight: 75 g (2.6 oz)
 注释: See Instrumentation for compatible meters

产品型号/产品描述
PX4100-150GV 150 psi transducer with a 20 mV output
PX4100-300GV 300 psi transducer with a 20 mV output
PX4100-600GV 600 psi transducer with a 20 mV output
PX4100-1KGV 1000 psi transducer with a 20 mV output
PX4100-1.5KGV 1500 psi transducer with a 20 mV output
PX4100-3KGV 3000 psi transducer with a 20 mV output
PX4100-6KGV 6000 psi transducer with a 20 mV output
PX4100-10KGV 10,000 psi transducer with a 20 mV output
