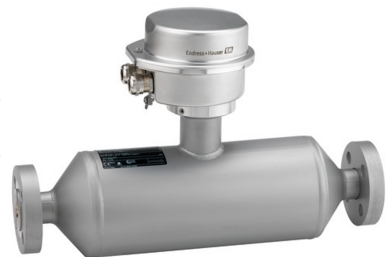

E+H I100科氏力质量流量计
：Endress+Hauser（E+H） 恩德斯豪斯
产地：德国
供应商：深圳市银飞电子科技有限公司
该质量流量计带紧凑型变送器，可同时进行在线粘度测量与流量测量。
单直管设计的Promass I 100流量计除了同普通科氏力质量流量计一样可测量质量流量、密度与温度外，还可在线测量粘度。与现有的小型变送器配套使用，Promass I 100流量计可用于测量小流量，是系统集成商、撬装设备制造商以及其他设备制造商的。
节能 - 全通经设计，可将压损降至低
减少过程测量点 - 多变量测量（流速、密度、温度）
节省安装空间 - 无需进出口直管段
精小型变送器 - 可测量小流量
省时的现场操作，无需额外的软件与硬件 - 内置网络服务器
综合验证 - Heartbeat 技术
科氏力测量原理不受流体本身的物理性质（比如粘度和密度）影响。
适用于要求压损低和缓流场合的液体和气体测量。
设备特性
易清洗的单直管系统
TMB®技术
测量管采用钛合金材料制造
坚固的紧凑型变送器外壳
高防护等级：IP69K
带现场显示
| 测量原理 | 科氏力 | |
| 主要特点 |
Combines in‐line viscosity and flow measurement with an ultracompact transmitter. Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment. |
|
| 特点 |
Energy‐saving – full bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Straight, easy cleanable single‐tube system. TMB® technology. |
|
| Transmitter features |
Space‐saving transmitter – full functionality on smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra‐compact transmitter housing. High ingress protection: IP69K. |
|
| 直径 |
DN 8 to 80 (⅜ to 3") |
|
| Wetted materials |
Measuring tube: Titanium grade 9 Connection: Titanium grade 2 |
|
| Measured variables |
Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity |
|
| 测量误差 |
Mass flow (liquid): ±0.1 % Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.5 % Density (liquid): ±0.0005 g/cm³ |
|
| 量程 |
0 to 180 000 kg/h (0 to 6600 lb/min) |
|
| 压力范围 |
PN 100, Class 600, 63K |
|
| 过程温度 |
–50 to +150 °C (–58 to +302 °F) |
|
| 环境温度 |
Standard: –40 to +60 °C (–40 to +140 °F) Option: –50 to +60 °C (–58 to +140 °F) |
|
| Sensor housing material |
04L), corrosion resistant |
|
| Transmitter housing material |
Compact: AlSi10Mg, coated Compact/ultra‐compact: 1.4301 (304), 1.4404 (316L) |
|
| 电子插件的防护 |
Standard: IP66/67, type 4X enclosure Option: IP69K |
|
| 显示/操作 |
4‐line backlit display available (no local operation) Configuration via web browser and operating tools possible |
|
| 输出 |
4‐20 mA HART (active) Pulse/frequency/switch output (passive) |
|
| 输入 |
None |
|
| 通信 |
HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET |
|
| Power supply |
DC 20 to 30 V |
|
| 防爆 |
ATEX, IECEx, cCSAus, INMETRO, NEPSI, TIIS |
|
| Metrological approvals and certificates |
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV Attestation) |
|
| Pressure approvals and certificates |
PED, CRN |
|
| Material certificates |
3.1 material |
|
| Hygienic approvals and certificates | 3-A, EHEDG | |
