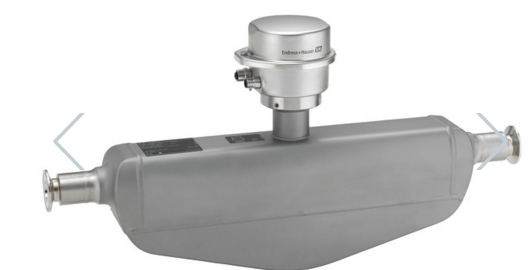

E+H S100科氏力质量流量计

E+H S100科氏力质量流量计

：Endress+Hauser（E+H） 恩德斯豪斯
产地：德国

供应商：深圳市银飞电子科技有限公司

易清洗的单管测量系统，具有自排空功能，搭配级紧凑型一体式变送器

Promass S采用的卫生型设计，是Endress+Hauser针对工业优化的测量解决方案，满足所有卫生要求，能够在食品和饮料行业中安装使用。搭配现今小尺寸的变送器外壳，能够以小尺寸实现所有性能。设计在狭小空间中安装使用，Promass S 100是系统集成商、撬制造商和设备制造商和佳选择。

• 测量原理不受流体物理特性的影响(例如：粘度和密度)。

• 于卫生型场合满足佳清洗效果的流量计。

• E+H S100科氏力质量流量计


仪表特点

• 多种卫生型过程连接

• 3A和EHEDG

• CIP/SIP清洗后能够快速恢复

• 坚固耐用的紧凑型一体式变送器外壳

• 高防护等级：IP69K

• 提供现场显示单元

• E+H S100科氏力质量流量计


特征和规格

测量原理	科氏力
主要特点	The easy‐to‐clean flowmeter with self‐drainable single‐tube system and an ultra‐compact transmitter. Dedicated for applications requiring optimal cleanability under hygienic conditions.
特点	Increased process safety – easy cleanable and fully self‐drainable tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Large range of hygienic process connections. 3‐A and EHEDG conform.
Transmitter features	Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra‐compact transmitter housing. High Ingress protection: IP69K.
直径	DN 8 to 50 (⅜ to 2")
Wetted materials	Measuring tube: 1.4435 (316L) Connection: 1.4435 (316L); L)
Measured variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
测量误差	Mass flow (liquid): ±0.1 %  Volume flow (liquid): ±0.1 %  Mass flow (gas): ±0.5 %  Density (liquid): ±0.0005 g/cm³
量程	0 to 70 000 kg/h (0 to 2570 lb/min)
压力范围	PN 40, Class 150, 20K
过程温度	–50 to +150 °C (–58 to +302 °F)
环境温度	Standard: –40 to +60 °C (–40 to +140 °F)  Option: –50 to +60 °C (–58 to +140 °F)
Sensor housing material	1.4301 (304), corrosion resistant
Transmitter housing material	Compact: AlSi10Mg, coated  Compact/ultra‐compact: 1.4301 (304); 1.4404 (316L)
电子插件的防护	Standard: IP66/67, type 4X enclosure  Option: IP69K
显示/操作	4‐line backlit display available (no local operation)  Configuration via web browser and operating tools possible
输出	4‐20 mA HART (active)  Pulse/frequency/switch output (passive)
输入	None
通信	HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power supply	DC 20 to 30 V
防爆	ATEX, IECEx, cCSAus, INMETRO, NEPSI, TIIS
Product safety	CE, C-Tick, EAC marking
Metrological approvals and certificates	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR  Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)
Pressure approvals and certificates	PED, CRN
Material certificates	3.1 material
Hygienic approvals and certificates	3‐A, EHEDG
