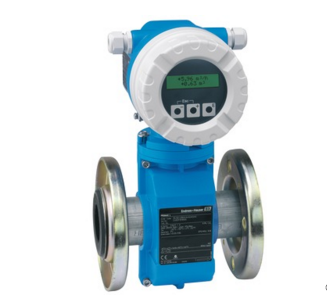

E+H 10L电磁流量计

E+H 10L电磁流量计

：Endress+Hauser（E+H） 恩德斯豪斯
产地：德国
供应商：深圳市银飞电子科技有限公司

该流量计配备重量优化的传感器，十分经济。

Promag L作为多用途的标准传感器，适用于水和污水行业，采用松套法兰过程连接，安装灵活，不受管道法兰的安装影响。结合满足基本应用并能够直接集成的Promag 10型变送器， Promag 10L在广泛的用途中提供的液体测量。它是客户大限度降低成本的解决方案。

• 测量原理的选择不受压力、密度、温度和粘度的限制

• 完全适用于水和污水行业的标准测量场合

• E+H 10L电磁流量计


仪表特性

• 传感器重量多可减轻 30 %

• 公称直径：DN 25 ～ 2400 (1～ 90")

• 安装开档尺寸缩短，符合DVGW/ISO标准

• 两行显示，按键操作

• 一体化型或分离型

• HART

• E+H 10L电磁流量计


特征和规格

测量原理	电磁
主要特点	The flowmeter with a weight‐optimized sensor and highly cost‐effectiveness. Fully suitable for standard applications in the water and wastewater industry.
特点	Reduced installation costs – flexible mounting by one‐of‐a‐kind lap‐joint flange concept (DN <350/14"). Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. Up to 30 % less sensor weight. Nominal diameter: DN 25 to 2400 (1 to 90").
Transmitter features	Cost‐effective – designed for easy applications and direct integration. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2‐line display with push buttons. Device in compact or remote version.
直径	Lap joint flange; lap joint flange, stamped plate: DN 25 to 300 (1 to 12")  Fixed flange: DN 350 to 2400 (14 to 90")
Wetted materials	Liner: PTFE; Polyurethane; Hard rubber  Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)
Measured variables	Volume flow
测量误差	Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s)
量程	9 dm³/min to 162 000 m³/h (2.5 gal/min to 1030 Mgal/d)
压力范围	PN 16, Class 150
过程温度	Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)  Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)  Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
环境温度	Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)  Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
Sensor housing material	DN 25 to 300 (1 to 12"): AlSi10Mg, coated  DN 350 to 2400 (14 to 90"): Carbon steel with protective varnish  Sensor connection housing: AlSi10Mg, coated
Transmitter housing material	Powder‐coated die‐cast aluminum
电子插件的防护	Compact version: IP66/67, type 4X enclosure  Sensor remote version (standard): IP66/67, type 4X enclosure  Sensor remote version (option): IP68, type 6P enclosure  Transmitter remote version: IP67, type 4X enclosure
显示/操作	2-line display with push buttons  Configuration via local display and operating tools possible
输出	4‐20 mA HART (active) Pulse/switch output (passive)
输入	None
通信	HART
Power supply	DC 11 to 40 V  AC 85 to 250 V (45 to 65 Hz)  AC 20 to 28 V (45 to 65 Hz)
防爆	cCSAus
Metrological approvals and certificates	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Hygienic approvals and certificates	Drinking water approval: ACS, KTW/W270, NSF 61, WRAS BS 6920
