安立红外线温度计AR-6500H
安立红外线温度计AR-6500H特点
测量范围广
小面积测量
放射率设定范围广
通过接触式温度传感器自动设定放射率
(对应型号：AR-6500)
安立红外线温度计AR-6500H规格
| 机种 | AR-6500 | AR-6501 | AR-6500-H | AR-6501-H | R-100 | R-150 | R-160 |
| 对应 CE | CE | CE | CE | CE | — | — | — |
| 测量范围 | -50 to 500°C | 0 to 1200°C | -50 to 500°C | 0 to 1200°C | |||
| 分辨率 | 0.1°C | 1°C | 1°C | 0.1°C | 1°C | ||
| 激光瞄准 | ? | ? | ? | ? | — | ? | ? |
| 接触式 | ? | ? | ? | ? | — | — | — |
| 测量精度 | |||||||
| 温度系数 | ±0.01% of full scale °C | ||||||
| 电源 | Ni-Cd rechargeable battery (4AA) | ||||||
| 电池寿命 | 30 hours to (10 hours when laser is used continuously) | ||||||
| 使用环境 | Operation : 0 to 40°C, 0 to 80%RH (Without Dew) Storage : -20 to 50°C, 0 to 85%RH (Without Dew) | ||||||
| 模拟输出 Table3 | — | 1mV / °C | — | 1mV / °C | — | — | — |
| 尺寸 | App. 400g | ||||||
| 附件 | Manual, Soft case, Lens cap, Charger | ||||||
| — | Output cable | — | Output cable | — | — | — | |
Table 1
AR-6500, AR-6501, R-100, R-150
| 非接触模式 | 250 to 500°C | ± (0.8% of reading + 1digit) |
| 0 to 250°C | ± (2°C + 1digit) | |
| -50 to 0°C | ± (3°C + 1digit) | |
| 接触 | -50 to 500°C | ± (0.05% of reading + 0.1°C) ±1digt |
非接触模式
| 检测器 | Thermopile |
| 波长 | 8 to 14μm |
| 精度 | ± (0.4% of reading + 1digit) |
| 反应时间 | 500ms (95%) |
| A-常数调整 | 0.10 to 2.00 (0.01 step) |
| 激光瞄准 | L2 models meet ICE Class2 |
接触式
| 输入 | Thermocouple Type : K |
| 显示时间 | 500ms |
Table 2
AR-6500-H, AR-6501-H, R-160
| 非接触模式 | 600 to 1200°C | ± (0.5% of reading + 1digit) |
| 250 to 600°C | ± (3°C + 1digit) | |
| 0 to 250°C | ± (4°C + 1digit) | |
| 接触 | 0 to 1200°C | ± (0.1% of reading + 1digit |
Table 3
| 输出 | 1mV / °C |
| 精度 | ± (0.15% of F / S + 1mV) : at 25±5°C ± (0.15% of F / S + 1mV) ±0.01% of F / S :except 25°C±5°C |

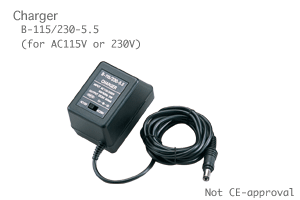

附件
