TFD-ENB-2W-40

 温度 » 电阻温度探测器(PT100)探头, 元件和装配 » RTD元件 » TFD

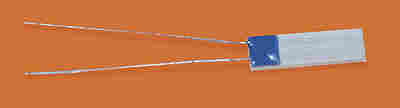

薄膜检测器 - 平坦RTD元件

Used in Wind Tunnels and Air Conditioners.
Rapid Response Time
Temperature Range: -50 to 550°C (-60 to 1020°F)

产品描述
This flat platinum resistance detector represents the latest development by OMEGA in miniaturization of temperature sensing devices. It combines the precision temperature measuring capability of the platinum resistance detector with the small temperature sensing tip and rapid response time of the thermocouple. An immediate field of application for the TFD is in the area of surface temperature measurement.. Rapid response times are achieved with the TFD because it possesses a large surface-area to- volume ratio and the temperature-sensitive platinum is separated from the medium to be measured by a thin ceramic substrate of high thermal conductivity.

Note on Assembling Omega "TFD" Series RTD Elements to Extension Wires: These RTD elements are made with platinum coated nickel lead wires. Since platinum does not easily wet with most soft solders, we advise that they be spot welded or silver soldered to extension wires when required.

产品编号  产品描述

Price Below is For One Element

TFD  9.5 x 1.9 x 0.9 mm (0.37 x 0.075 x 0.035")

Price Below is For One Element with 1m (40") PFA cable

TFD-ENB-2W-40  2 Wires 1 m (40") PFA insulated
TFD-ENB-3W-40  3 Wires 1 m (40") PFA insulated
TFD-ENB-4W-40  4 Wires 1 m (40") PFA insulated


产品编号

Price Below is For One Element

TFD

Price Below is For One Element with 1m (40") PFA cable

TFD-ENB-2W-40
TFD-ENB-3W-40
TFD-ENB-4W-40




产品型号
TFD
TFD-ENB-2W-40
TFD-ENB-3W-144
TFD-ENB-3W-189
TFD-ENB-3W-40
TFD-ENB-3W-60
TFD-ENB-4W-180
TFD-ENB-4W-364
TFD-ENB-4W-40
TFD-ENB-4W-40-TA4F
TFD-ENB-4W-600
