WT-2000风洞
风道，适用于电路板、散热片、组件的散热和空气速度传感器校准
WT-2000
风道，适用于电路板、散热片、组件的散热和空气速度传感器校准
Portable Bench-Top Design
Provides Highly Accurate, Uniform and Repeatable Air Flow up to 1000 fpm*
Included Control Box Allows for Open Loop Full Scale Operation of Individual Fans, Groups of 2 Fans, or All 4 Fans at a Time
Free PC Based Open Loop Software Allows User to Precisely Control Air Flow Rate Using the Included USB Cable to Connect to the Control Box
Large Test Chamber with a Hinged Access Door and Small Access Panel Allows for Fast Comparison Testing on Many Different Size Heat Sinks and Circuit Boards
Operates from 90 to 264 Vac Line Power

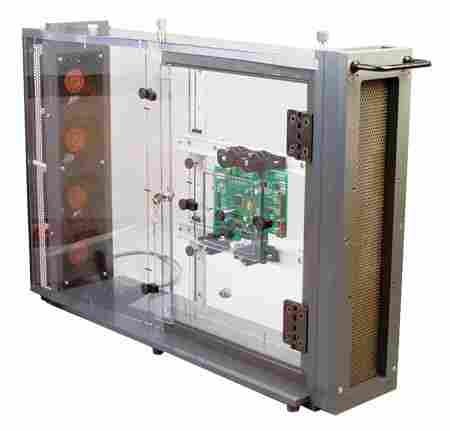

The new thermal wind tunnel from OMEGA is designed to give a highly accurate and uniform flow rate. Four powerful DC fans are precisely controlled to provide variable air speeds from 0 to 1000 ft/min. The WT-2000 wind tunnel was designed to provide thermal characterization of circuit boards, heat sinks and components. The unit is made of clear polycarbonate and PVC for a durable and transparent assembly. The large test section is accessed by the large hinged door and accommodates a removable test plate, as well as a rail system that allows for a wide range of mounting options. In addition, there is a small access door that accommodates the quick changing of smaller components and the placement of sensors. Multiple access ports with 1/4 and 1/2 " compression fittings are provided on the top and rear panel of the wind tunnel for the routing of wires and insertion of sensors.
规格
WIND TUNNEL
Flow Rate: 5 m/s (0 to 1000 ft/min)
Size: 80.5 L x 18.4 W x 48.4 cm H (31.7 x 7.3 x 19.1")
Weight: 12.48 kg (27.5 lb)
Test Chamber: 43 x 8.25 cm cross section (17 x 3.25")
Fan Speed: 3800 RPM
DC Fan Motor: 12 Vdc @ 0.47A ea (5.6W ea) x 4
Noise: 61 dBA max, 1 meter away
ELECTRICAL CONTROL BOX
Power: 90 to 264 Vac @ 47 to 63 Hz
Fuse: 2A fast acting 5 x 20 mm cartridge type
Size: 16 L x 13.8 W x 6.7 cm H (6 1/4 x 4 7/16 x 2 11/16")
Weight: 0.9 kg (2 lb)
PC Interface: USB
Operating Temperature: 5 to 45°C (41 to 113°F)
Operating Relative Humidity: Less than 80% without condensation
*All specifications measurements at ambient room temperature of 22.2°C (70°F) with less than 80% relative humidity and 760 mm (29.92") of Hg barometric pressure.
产品型号/产品描述
WT-2000 Wind tunnel package
Accessories
TVS-1004 Velocity and temperature measurement system (4 sensors)
HHF42 Hot wire anemometer
FMA-903-V General purpose air velocity transducer, 0 to 1000 SFPM (0 to 5 V or 4 to 20 mA output)
SA1-K Type K self adhesive thermocouples with stripped ends (5-pack)
SA1-RTD-B 100 Ohm self adhesive RTD temperature sensors with stripped ends (3-pack)
SA2C-K Type K, curved surface, molded silicon self adhesive thermocouple
SA2F-K Type K, flat surface, molded silicon self adhesive thermocouple
ML4C-143-10 Non-reversible OMEGALABEL? temperature monitors with temperature ratings of 143, 149, 154, and 160°C (10-pack)
POWER CORD-DM Power cord (Denmark)
POWER CORD-E-10A Power cord (Continental Europe)
POWER CORD-IT Power cord (Italy and Ireland)
POWER CORD-UK Power cord (United Kingdom)
POWER CORD-SE Power cord for all countries (stripped ends) 250 Vac max.
注释: Comes with fully assembled wind tunnel test chamber, electronic control box controller fan control cable, PC interface cable, molded power cord (for US, Canada, and Mexico), complete operator'’s manual, and PC interface software CD.
