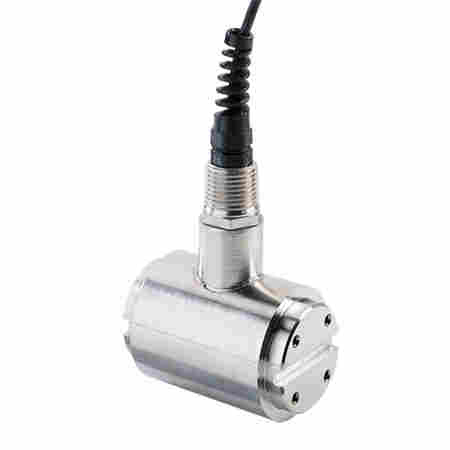

TQ401-250扭矩传感器

反作用扭矩传感器，表面键安装
TQ401
CE
反作用扭矩传感器，表面键安装
在工业环境 长期可靠性的不锈钢外壳
高精度
的低噪声测量 屏蔽电缆
重型安装为阳性，无滑移连接

规格

Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms min.
Output Resistance: 350 ±5 Ohms
Accuracy: ±0.23% FSO
Linearity: ±0.2% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Operating Temp. Range: -54 to 107°C (-65 to 225°F)
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.005% FSO/°F
Span: ±0.005% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 10 ft (3 m) 4-conductor color coded, shielded PVC cable with strain relief

产品型号/产品描述

TQ401-30 Reaction torque sensor with surface key mount and +/- 30 ft-lb range

TQ401-100 Reaction torque sensor with surface key mount and +/- 100 ft-lb range

TQ401-250 Reaction torque sensor with surface key mount and +/- 250 ft-lb range
