CSK06030

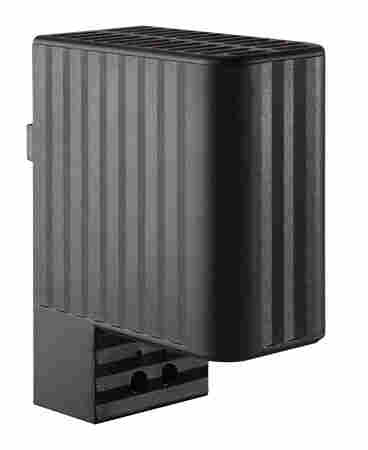

加热器 » 舒适型加热器 » CSK060 Series
可安全触摸小型加热器10 W、20 W
CSK060 Series
Low Surface Temperature
Double Insulated (Plastic Housing)
Wide Voltage Range
Temperature Limiting
DIN Rail Mountable
产品描述
These heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured. The heaters are designed for permanent operation.
SPECIFICATIONS
Operating Voltage: 120 to 240 Vac/Vdc* (min 110V, max 265V)
Heating Element: PTC resistor: temperature limiting
Surface Temperature: <85°C (185°F), (according to VDE 0100), except upper protective grille
Connection: 2-pole terminal 2.5 mm2 (0.1"), torque 0.8 Nm max
Casing: Plastic according to UL94 V-0, black
Dimensions: 98 x 38 x 75 mm (3.9 x 1.5 x 3.0")
Mounting: Clip for 35 mm (1.4") DIN rail, EN 50022
Fitting Position:
Vertical Operating/Storage Temperature: -45 to 70°C (-49 to 158°F)
Protection Type/Protection Class: NEMA 2 (IP20)/II (double insulated)
Approvals: VDE + UL File No. E150057 (according to UL499 in combination with UL508A)
Note: Other voltages on request
* Operating with voltages below 140 Vac/Vdc reduces heating performance by approximately 10%.
产品编号 产品描述
CSK06030 Enclosure heater, 20 W, 120 to 240 Vac/Vdc
CSK06040 Enclosure heater, 10 W, 120 to 240 Vac/Vdc
产品编号
CSK06030
CSK06040
====
CSK06030
CSK06040
CSK060401
