SSHB-612-180-120
加热器 » 柔形加热器 » 鼓式加热器和水箱加热器 » SSHB Series
Rugged Low Cost Flexible Heating Blankets
RoHS
Moisture and Chemical Resistant
Constant Low Watt Density of 2½W/in2
Maximum Exposure Temperature of 450°F
Five Standard Sizes
Easy to Install
120, 240 or 480 V*
Optional Pressure Sensitive Adhesive Available
APPLICATIONS
•Storage Tanks
•Conveyors
•Water and Feed Troughs
•Dust Collectors
•Tank Trucks
•Process Vats and Dip Tanks
•Melt Pots
产品描述

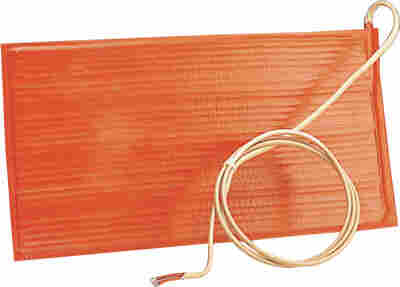

OMEGALUX® silicone rubber laminated heating blankets are low watt density electrical resistance heaters in blanket form. They are designed for freeze protection as well as process temperature control applications. The rugged heater element is made from multi-strand braided and knitted wire. The vulcanized heater assembly is water tight. Optional pressure sensitive adhesive makes installation easy. Heat from the blanket itself cures the silicone adhesive, creating a permanent bond.
CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warnings.
Model No. (Without Adhesive) Model No. (With Adhesive) Volts Watts Dimensions
SSHB-612-180-120 SSHB-612-180-120-P 120 180 6" x 12"
SSHB-612-180-240 SSHB-612-180-240-P 240 180 6" x 12"
SSHB-624-360-120 SSHB-624-360-120-P 120 360 6" x 24"
SSHB-624-360-240 SSHB-624-360-240-P 240 360 6" x 24"
SSHB-1212-360-120 SSHB-1212-360-120-P 120 360 12" x 12"
SSHB-1212-360-240 SSHB-1212-360-240-P 240 360 12" x 12"
SSHB-1224-720-120 SSHB-1224-720-120-P 120 720 12" x 24"
SSHB-1224-720-240 SSHB-1224-720-240-P 240 720 12" x 24"
SSHB-2424-1440-120 SSHB-2424-1440-120-P 120 1440 24" x 24"
SSHB-2424-1440-240 SSHB-2424-1440-240-P 240 1440 24" x 24"
产品编号 产品描述
SSHB-612-180-120 heating blanket, 180 W, 120 V, without adhesive
SSHB-612-180-240 heating blanket, 180 W, 240 V, without adhesive
SSHB-612-180-240-P heating blanket, 180 W, 240 V, with adhesive
SSHB-624-360-120-P heating blanket, 360 W, 120 V, with adhesive
SSHB-624-360-240-P heating blanket, 360 W, 240 V, with adhesive
SSHB-1224-720-120 heating blanket, 720 W, 120 V, without adhesive
SSHB-1224-720-120-P heating blanket, 720 W, 120 V, with adhesive
SSHB-2424-1440-120 heating blanket, 1440 W, 120 V, without adhesive
SSHB-2424-1440-240 heating blanket, 1440 W, 240V, without adhesive
SSHB-2424-1440-120-P heating blanket, 1440 W, 120 V, with adhesive
SSHB-2424-1440-240-P heating blanket, 1440 W, 240 V, with adhesive
SSHB-1212-360-120-P heating blanket 120 VAC with adhesive
SSHB-1224-720-120-P heating blanket 120 VAC with adhesive
SSHB-1224-720-240 heating blanket 240 VAC without adhesive
SSHB-1212-360-120 heating blanket 120 VAC without adhesive
