TAT30001
加热器 » 浸没式加热器 » 槽边式浸入式加热器 » TAT3

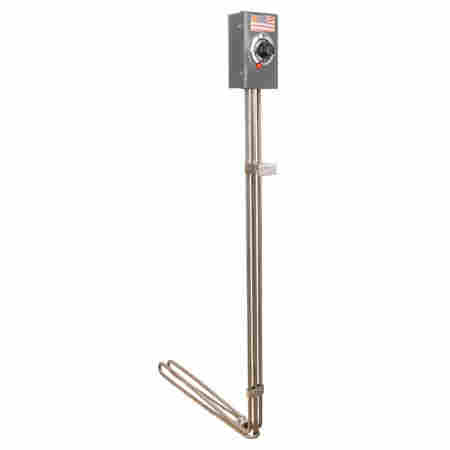

鼓状浸入式加热器，适用于高粘性溶液和可调不锈钢安装托架
新产品!
Fits Through the Standard 51 mm (2") Bung Opening in 55 Gallon Drums
Ideal for Improving the Flow of Lard, Tar, Oils and Other High Viscosity Solutions
Double Pole 16 to 121ºC (60 to 250°F) Thermostat with Over- Temperature Cutout and Pilot Lamp to Indicate Heater On/Off Status
Only 203 mm (8") of Vertical Riser is Heated, Allowing Liquid Level to Fluctuate without Damaging the Heater
Adjustable Stainless Steel Mounting Bracket
产品描述
Installation, Operation and Maintenance Instructions
1. Ensure the Vertical Heated Portion, Which Extends 203 mm (8") Up Riser from Bottom of Element, is Always Fully Immersed
2. Use in Metal Drums, Containers or Heat Resistant Tanks Only
3. All Wiring Should Be in Accordance with NEC/Nfpa and Local Codes
4. Use Techniques Safe for the Heater and Surrounding Environment
5. Use Mounting Brackets to Position Heater Away from Tank Wall and Above Sludge Buildup at Bottom of Tank
6. Periodically Remove the Heater to Clean Residues and Inspect for Damage
Model No. Sheath Watt Density Watts Volts A B
watt/in2 watt/cm2 mm inch mm inch
TAT30003 Copper 8 1.2 1000 120 914 36 483 19
TAT30004 32 5.0 4000 240
TAT30002 Stainless Stee 914 36 483 19
TAT30000
TAT30005 Stee 914 36 483 19
TAT30006 32 5.0 4000 240
Note: This style heater can be manufactured with “A” and “B” dimensions suitable for other applications. Consult Omega with your requirements.
Ordering Example: TAT30003, 1000 watts, 120 Vac immersion heater.
产品编号 产品描述
Copper Sheath
TAT30003 Sheath; Copper, 1000 Watts, 120 Volts, 36 Inches High x 19 Inches Long
TAT30004 Sheath; Copper, 4000 Watts, 240 Volts, 36 Inches High x 19 Inches Long
Stainless Steel Sheath
TAT30002 Sheath; Stainless Steel, 1000 Watts, 120 Volts, 36 Inches High x 19 Inches Long
TAT30001 Sheath; Stainless Steel, 4000 Watts, 240 Volts, 36 Inches High x 19 Inches Long
Steel Sheath
TAT30005 Sheath; Steel, 1000 Watts, 120 Volts, 36 Inches High x 19 Inches Long
TAT30006 Sheath; Steel, 4000 Watts, 240 Volts, 36 Inches High x 19 Inches Long
