TMO-1830F1E3/240V/3P
加热器 » 浸没式加热器 » 法兰浸入式加热器 » TMO Series

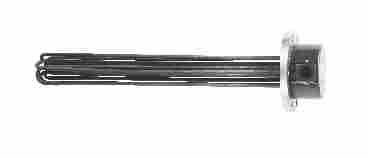

Flanged Immersion Heater for Medium Weight Oil
RoHS
UL Listed
3 to 24 kW
Low Watt Density, 15 W/in2
3.5 and 6 Inch 150 lb. steel Flange
High Grade Steel Sheath
产品描述
FEATURES
Heavy coil construction— Watt density on the heating coil is designed for low watt density operation by increasing the coil diameter and length to give maximum coil surface area and limit coil surface temperature, providing longer coil life.
CAUTION AND WARNING!
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warning.
kW Dim.B
in (cm) Wt.
Ib(kg) E1 General
Purpose Enclosure1
Model No. Dim. N.
in(cm) E2 Moisture Resistant/
Explosion Res.Encl.2
Model No. Dim. N
in(cm)
3 Inch-150 Ibs. Steel Flange, 3 Steel Sheath Elements — 15 W/in2
3 25 3/16 (64) 17(8) TMO-30315/240/ 1 (3) TMO-30315E2/240/* 3/4 (2)
3 25 3/16 (64) 17(8) TMO-30315/480/ 1 (3) TMO-30315E2/480/* 3/4 (2)
4 33 1/16 (84) 18 (8) TMO-30415/240/ 1 (3) TMO-30415E2/240/* 3/4 (2)
4 33 1/16 (84) 18 (8) TMO-30415/480/ 1 (3) TMO-30415E2/480/* 3/4 (2)
6 48 1/16 (122) 21 (10) TMO-30615/240/ 1(3) TMO-30615E2/240/* 3/4 (2)
6 48 1/16 (122) 21 (10) TMO-30615/240/* 1(3) TMO-30615E2/240/* 3/4 (2)
kW Circ.
& Ph. Dim.B
in (cm) Wt.
Ib(kg) General Purpose Enclosure1
Model No. Dim. N.
in(cm) E3 Explosion Res. Encl.2
Model No. Dim. N
in(cm) E4 Moisture Res.Encl.1
Model No. Dim. N
in(cm)
5 Inch-150 Lb. Steel Flange, 6 Stainless Sheath Elements — 15 W/in2
8 (15) TMO-60825/**/3P 1 (3) TMO-60825E3/**/3P 1 1/2 (4) TMO-60825E4/**/3P 1 (3)
10 1-3 40 9/16 (103) 34 (15) TMO-61025/**/3P 1 (3) TMO-61025E3/**/3P 1 1/2 (4) TMO-61025E4/**/3P 1 (3)
12 1-3 48 1/16(122) 37 (17) TMO-61225/**/3P 1 (3) TMO-61225E3/**/3P 1 1/2 (4) TMO-61225E4/**/3P 1 (3)
5) 40 (18) TMO-61525/**/3P 1 (3) TMO-61525E3/**/3P 1 1/2 (4) TMO-61525E4/**/3P 1 (3)
3) 43 (20) TMO-61825/**/3P 1 (3) TMO-61855E3/**/3P 1 1/2 (4) TMO-61825E4/**/3P 1 (3)
6 Inch-150 Lb. steel Flange, 12 Cooper Sheath Elements — 15 W/in2
12 2-3 25 1/8 (64) 67 (30) TMO-1212F1/**/3P 1 (3) TMO-1212F1E3/**/3P 1 1/2 (4) TMO-1212F1E4/**/3P 1 1/2 (4)
4) TMO-1216F1/**/3P 1 (3) TMO-1216F1E3/**/3P 1 1/2 (4) TMO-1216F1E4/**/3P 1 1/2 (4)
20 2-3 40 1/2 (103) 84 (38) TMO-1220F1/240/3P 2 (5) TMO-1220F1E3/240/3P 1 1/2 (4) TMO-1220F1E4/240/3P 1 1/2 (4)
20 2-3 40 1/2 (103) 84 (38) TMO-1220F1/480/3P 1 (3) TMO-1220F1E3/480/3P 1 1/2 (4) TMO-1220F1E4/480/3P 1 1/2 (4)
24 2-3 48 (122) 111 (50) TMO-1224F1/240/3P 2 (5) TMO-1224F1E3/240/3P 1 1/2 (4) TMO-1224F1E4/240/3P 1 1/2 (4)
24 2-3 48 (122) 111 (50) TMO-1224F1/480/3P 1 (3) TMO-1224F1E3/480/3P 1 1/2 (4) TMO-1224F1E4/480/3P 1 1/2 (4)
/* Add the suffix “/3P” to the catalog number for 3 phase power.
/** Designate voltage, i.e., 240 for 240 VAC or 480 for 480 VAC.
Note: Larger flange sizes and kW rating available. Contact Omegalux®
1 Heaters with General Purpose and Moisture Resistant Enclosures are UL Listed and CSA Certified. 2 Heaters with Explosion Resistant Enclosures are CSA NRTL/C certified and are not intended for use in hazardous areas.
When using the Part Number Builder some part number combinations may not be valid!
Please review the tables and spec sheet for valid part numbers, or consult with Temperature
Engineering if you need help selecting a heater or to verify part number validity or availability!
产品编号 产品描述
Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.
TMO-30315/240V Heater, 3 kW, 240 V, general purpose enclosure
TMO-30615E2/240V/3P Heater, 6 kW, 240 V, moisture resistant/explosion resistant enclosure, 3 phase power
TMO-1220F1E4/480V/3P Heater, 20 kW, 480 V, E4 moisture resistant enclosure, 3 phase power
产品编号产品描述
Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.
TMO-30315/240V
TMO-30615E2/240V/3P
TMO-1220F1E4/480V/3P
TMO-30315/240V
TMO-30315/240V/3P
TMO-30315/480V
TMO-30315/480V/3P
TMO-30315E2/240V
TMO-30315E2/240V/3P
TMO-30315E2/480V
TMO-30315E2/480V/3P
TMO-30315E2T1/240V/3KW/3P
TMO-30315E2T93/240V/3P
TMO-30315E2T93/480V/3P
TMO-3035/240V
TMO-3035/240V/3P
TMO-3035/480V
TMO-3035/480V/3P
TMO-3035E2/240V
TMO-3035E2/240V/3P
TMO-3035E2/480V
TMO-3035E2/480V/3P
TMO-30415/240V
TMO-30415/240V/3P
TMO-30415/480V
TMO-30415/480V/3P
TMO-30415E2/240V
TMO-30415E2/240V/3P
TMO-30415E2/480V
TMO-30415E2/480V/3P
TMO-30415E2T93/240V/3P
TMO-30415E2T93/480V/3P
TMO-3045/240V
TMO-3045/240V/3P
TMO-3045/480V
TMO-3045/480V/3P
TMO-3045E2/240V
TMO-3045E2/240V/3P
TMO-3045E2/480V
TMO-3045E2/480V/3P
TMO-30615/240V
TMO-30615/240V/3P
TMO-30615/480V
TMO-30615/480V/3P
TMO-30615E2/240V
TMO-30615E2/240V/3P
TMO-30615E2/480V
TMO-30615E2/480V/3P
TMO-30615E2T2/480V/3P
TMO-30615E2T93/240V/3P
TMO-30615E2T93/480V/3P
TMO-3065/240V
TMO-3065/240V/3P
TMO-3065/480V
TMO-3065/480V/3P
TMO-3065E2/240V
TMO-3065E2/240V/3P
TMO-3065E2/480V
TMO-3065E2/480V/3P
TMO-3075/240V/3P
TMO-3075/480V
TMO-3075/480V/3P
TMO-3075E2/480V
TMO-3075E2/480V/3P
TMO-3095/240V
TMO-3095/240V/3P
TMO-3095/480V
TMO-3095/480V/3P
TMO-3095E2/240V
TMO-3095E2/240V/3P
TMO-3095E2/480V
TMO-3095E2/480V/3P
