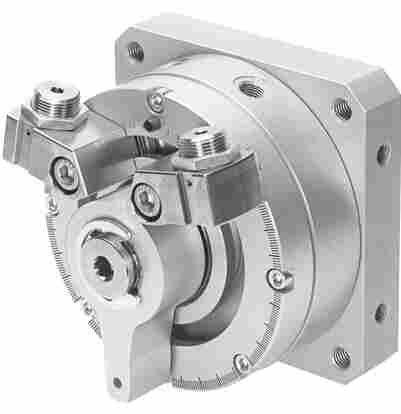

摆动模块DSM-16-270-P-A-B,费斯托叶片式摆动气缸
摆动驱动器DSM-16-270-P-A-B产品代号: 547574带中心轴， 固定式挡块和位置检测 尺寸16
缓冲角度 1.4 deg
旋转角度调整范围 0 ... 270 deg
摆动角度 0 ... 270 deg
缓冲 P: 两端带弹性缓冲环/板
装配位置 任意
精密调节 -6 deg
工作模式 双作用
设计结构 旋转叶片
Solenoid valve VSVA-B-M52-AZH-A2-1C1 (547079)
Solenoid valve VSVA-B-M52-AZH-A2-1R2L (534784)
Solenoid valve VSVA-B-M52-AZH-A2-1R5L (546777)
Solenoid valve VSVA-B-M52-AZH-A2-2AC1 (547199)
Solenoid valve VSVA-B-M52-AZH-A2-3AC1 (547239)
Solenoid valve VSVA-B-M52-AZH-A2-5C1 (547159)
Solenoid valve VSVA-B-M52-MD-D1-1R5L (561363)
Solenoid valve VSVA-B-M52-MD-D2-1R5L (566994)
位置检测 用于接近式传感器
工作压力 1.8 ... 10 bar
6 bar时的大摆动频率 2 Hz
耐腐蚀等级 CRC 0 - 无腐蚀影响
环境温度 -10 ... 60 °C
大轴向力 30 N
大径向力 75 N
6 bar时的理论扭矩 2.5 Nm
允许的质量惯性矩 0.01 kgm2
产品重量 470 g
安装类型 具有内（阴）螺纹
气动连接 M5
材料备注 不含有黄铜和PTFE
驱动轴的材料信息 钢镀镍
密封件的材料信息 TPE-U(PU)
外壳的材料信息 锻造铝合金
