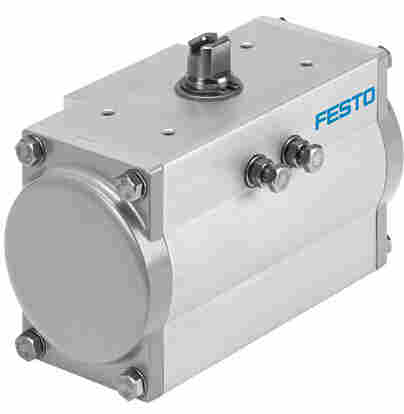

8047616 DFPD-80-RP-90-RD-F0507 摆动驱动器
驱动器尺寸  80
法兰孔的样式  F0507
摆动角度  90 deg
0°时的终端位置调节范围  -5 ... 5 deg
90°时的终端位置调节范围  -5 ... 5 deg
主轴连接深度  19.3 mm
连接件接口符合标准  ISO 5211
缓冲  无缓冲
装配位置  任意
工作模式  双作用
设计结构  齿轮齿条机构
位置检测  可选
关闭方向  向右关闭

阀的接口符合标准  VDI/VDE 3845 (NAMUR)
定位器和位置传感器的接口符合标准  VDI/VDE 3845 规格AA 1
工作压力  2 ... 8 bar
额定工作气压  5.5 bar
ATEX 类气体  II 2G
燃爆防护型气体  c T4 X
ATEX 类粉尘  II 2D
燃爆防护型粉尘  c 105°C X
符合防爆要求的环境温度  -20°C <= Ta <= +80°C
环境温度  -20 ... 80 °C
