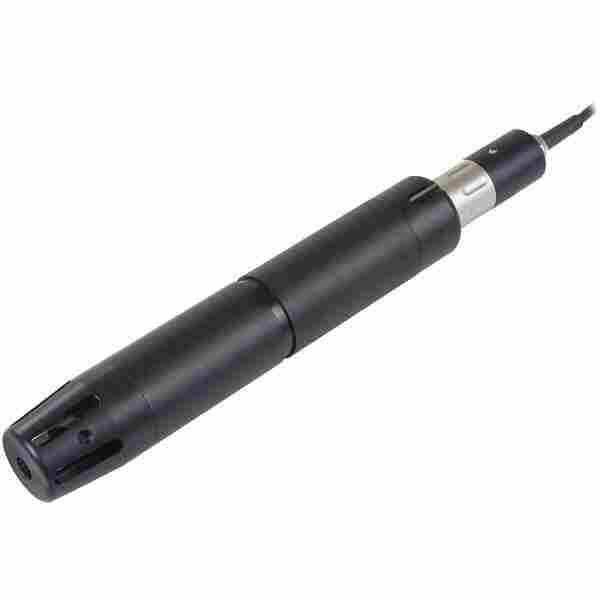

Calibration-free, reliable, DIN compliant - the optical FDO ® oxygen sensors for the IQ Sensor Net to regulate biological cleaning steps
FDO® sensors are the perfect solution for measuring dissolved oxygen. In addition to being free of calibration and flow, with their 45° membrane, they are also insensitive to air bubbles. Therefore, you will not require any additional installation equipment. The robust design of this sensors allows the use with an overpressure of up to 10 bar. The special membrane has a unique stability and thus ensures stable measured values.

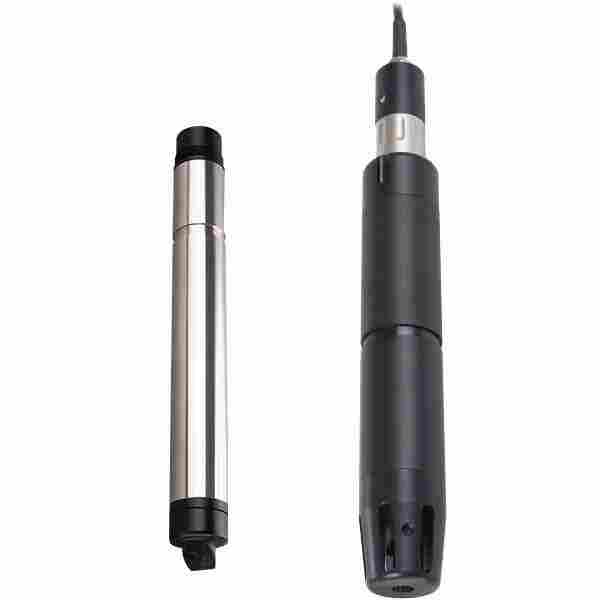

The sea water model (FDO ® 700 IQ SW) is optimized for use in special media: All wetted parts are made of titanium and plastic and are therefore extremely resistant to corrosion.
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| FDO ® 700 IQ | Optical O 2 sensor for connection to the IQ Sensor Net . (Please order cable separately) | 201650 | |||
| FDO ® 701 IQ | like the FDO ® 700 IQ, but with a faster response time | 201660 | |||
| FDO ® 700 IQ SW | like the FDO ® 700 IQ, but as sea water model with plastic arming (POM) | 201652 | |||
| FDO ® 701 IQ SW | like the FDO ® 700 IQ SW, but with a faster response time | 201653 | |||
| FDO ® 700 IQ | FDO ® 700 IQ SW* | FDO ® 701 IQ | FDO ® 701 IQ SW* | |
| Measuring ranges: | ||||
| O2 concentration | 0 ... 20.00 mg/l (0 ... 20,00 ppm) | _H | _H | _H |
| O2 saturation | 0...200.0 % | _H | _H | _H |
| Resolution: | ||||
| O2 concentration | 0.01 mg/l (0.01 ppm) | _H | _H | _H |
| O2 saturation | 0.1 % | _H | _H | _H |
| Response time: | t90: <150 s t95: <200 s | _H | t90: <60 s t95: <80 s | _H |
| Temperature measurement | Integrated NTC, -5 … +50 °C | _H | _H | _H |
| Operating temperature | -5 … +50 °C | _H | _H | _H |
| Pressure resistance | 10 bar overpressure | _H | _H | _H |
| * SW: Sensor as sea water model (with plastic arming (POM) |
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| SC-FDO ® 700 | Membrane cap for FDO ® 700 IQ | 201654 | |||
| SC-FDO ® 701 | Membrane cap for FDO ® 701 IQ | 201655 | |||
| MSK FDO ® | Membrane protective basket, protects from fish bites and stone impacts | 205253 | |||
| MSK FDO ® CS | Cleaning set for FDO ® in connection with MSK FDO ® | 205254 | |||
