Measure oxidation or reduction potentials in waterous solutions with integrated temperature sensor – digital, wireless and in depth profile
ORP electrodes deliver a sensitive voltage signal from reactions in waterous solutions, where the reaction partners exchange loads on the Pt
This is exactly where the concept of IDS sensors comes in. Digital data transfer is protected from interference, allows the use of long cables and permits important additional information, such as calibration data and sensor characteristics.
WTW's proven ORP electrodes are now available as sustainable plug head versions. The universal plug head fits the sensor with wireless functionality – disturbing cables are no longer required.
Furthermore it can be connected to AS/IDS-x cables with lengths of up to 100 m. With this new technology WTW significantly expands the range of applications and the measuring comfort of its ORP electrodes.
| Model | De |
Order no. | |||
|---|---|---|---|---|---|

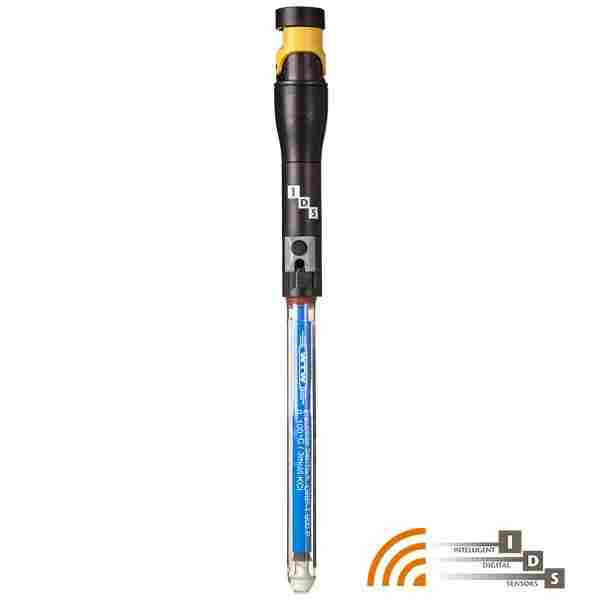

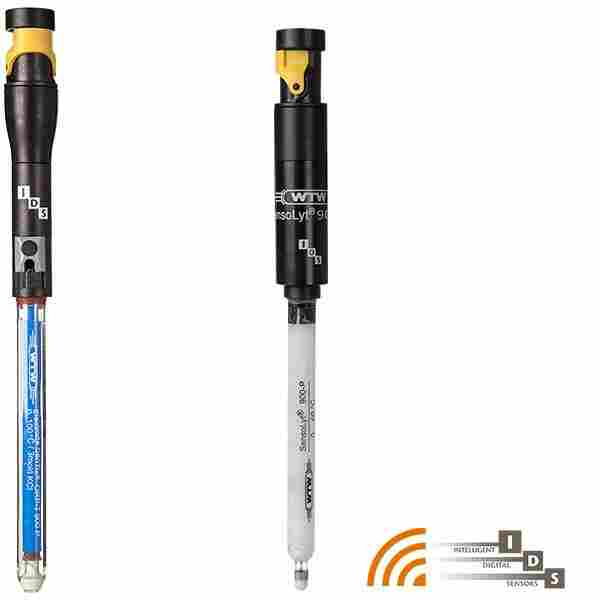

| SenTix® ORP-T 900-P | Pt electrode with 3 mol/l KCl and plug head | 103763 | |||

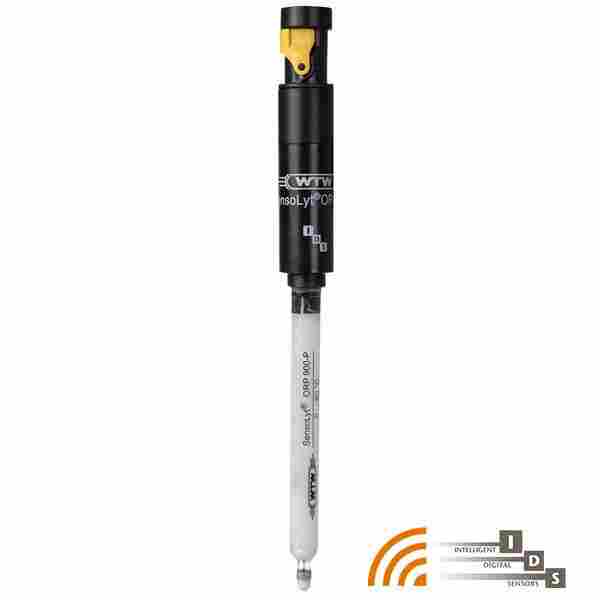

| SensoLyt® ORP 900-P | Pressure-resistant electrode (10 bar) with plug head for MPP and field use | 103749 | |||
| SenTix ® ORP-T 900-P | SensoLyt ® ORP 900-P* | ||||
|---|---|---|---|---|---|
| Measuring range mV | ±1200.0 ±0.2 | ±1200.0 ±0.2 | |||
| Operating range Temp. | 0 … 100 °C | 0 … 60 °C | |||
| Reference electrolyte | 3 mol/l KCl | Polymer | |||
| Sensor | Platin | Platin | |||
| Diaphragm | Ceramic | Hole | |||
| Shaft: | _H | _H | |||
| Material | Glass | Glass | |||
| Length | 120 mm | 120 mm | |||
| Diameter | 12 mm | 12 mm | |||
| * Pressure resistant up to 10 bar (IP 68) | _H | _H | |||
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| IDS WLM-S | Wireless module for plug head sensor | 108141 | |||
| IDS WLM-M | Wireless module for IDS meter | 108142 | |||
| WLM-Charger | USB charger for wireless modules | 108143 | |||
| IDS WLM Kit | Kit consisting of wireless module for sensor and meter (one of each), USB charger and universal USB power supply | 108144 | |||
| NT USB Universal | Universal USB power supply | 902872 | |||
| AS/IDS-1.5 | Connecting cable for MPP IDS as well as plug head sensors, length 1.5 m | 903850 | |||
| AS/IDS-3 | Like above, 3 m | 903851 | |||
| AS/IDS-6 | Like above, 6 m 903852 | ||||
| AS/IDS-10 | Like above, 10 m | 903853 | |||
| AS/IDS-15 | Like above, 15 m | 903854 | |||
| AS/IDS-20 | Like above, 20 m | 903855 | |||
| AS/IDS-25 | Like above, 25 m | 903856 | |||
| AS/IDS-40 | Like above, 40 m | 903857 | |||
| AS/IDS-60 | Like above, 60 m | 903858 | |||
| AS/IDS-100 | Like above, 100 m | 903859 | |||
| A 925-P | Replacement head for existing protective basket | 903838 | |||
| A 925-P/K | Arming for IDS –P Sensoren with protective basket made of POM | 903839 | |||
| A 925-P/S | Arming for IDS –P sensors with protective basket made of stainless steel | 903840 | |||
| A pHLab/K | Plastic arming for SenTix ® IDS pH electrodes | 903841 | |||
| D 3Sen | Flow vessel for field measurements | 903842 | |||
Product brochure IDS wireless modules
ion>"Free and connected – IDS goes Wireless!" (4 pages)
447 K
Product brochure IDS depth probes
ion>"Profile Measurement with IDS Multi-parameter Sondes" (4 pages)
476 K
