OMG-HICOM/9

数据采集 » 插卡 » 通讯卡/板 » OMG-ULTRA-SI0
双端口绝缘/非绝缘ISARS-422/485适配器，用于DOS、Windows 3.1x/95/98/ME/NT/2000/XP和OS/2通讯
OMG-ULTRA-SI0

True Isolation Between Ports Providing 500 Vdc Isolation (OMG-ULTRA-SIO-I)
Automatic Control of RS485 Driver Enable (No Special Software Required)
Selectable COM: Port Address
Selectable and Sharable IRQ (2-7, 10-12, 14 and 15)
Compatible with Existing Communication Drivers
16-Bit Addressing Eliminates I/O Conflicts
16550 Buffered UART Standard/Full Array of Advanced UARTS Available
Selectable Termination, Echo Mode, Two/Four Wire Operation
DB-9P Connectors Providing TD, RD, RTS and CTS
Includes Windows Advanced COM Drivers and Help Files to Simplify Installation

产品描述

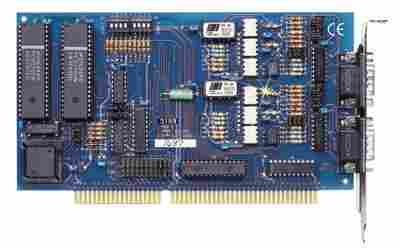

The OMG-ULTRA-SIO provides the PC with two isolated RS422/485 Asynchronous s to data collection and other devices. Isolation is important in installations where the equipment connected to the PC is either located far from the host system, or on a different power transformer circuit. The optical isolation feature of the OMG-ULTRA-SIO-I eliminates the risk of ground loop current, a commonly neglected and misunderstood phenomenon which leads to data errors and destruction of communications equipment. Individually selectable addresses and extended “AT” interrupts allow for seamless integration into Windows and OS/2 systems. The OMG-ULTRA-SIO appears to the host system as a standard COM: port requiring no special drivers or additional software.

Software
WIN XP/Vista/7 drivers are included as well as support for Linux. The drivers provide IRQ sharing, advanced UART support and serial diagnostic utilities.

SPECIFICATIONS
Communications Chip: 16550 UART
Number of Ports: Dual RS422/485
Isolation: True 500 Vdc isolation (OMG-ULTRA-SIO-I only)
Max Data Rate: 115 kBPS
Max Data Distance: Up to 1524 m (5000')
RS485 Operation: Two or four wire
Operating Temperature: -18 to 50°C (0 to 122°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Humidity Range: 10 to 90% RH
Current Specifications: OMG-ULTRA-SIO; +5V @ 440 mA; OMG-ULTRA-SIO-I; ±5V @ 600 mA
Connector(s): (2) DB–9P
Physical Dimensions: 18.67 L x 10.67 H cm (7.35 x 4.2")

产品编号  产品描述

OMG-ULTRA-SIO-I  Dual port isolated RS422/485 interface

产品型号
OMG-ULTRA-485-PCI
OMG-ULTRACOMM2-PCI
OMG-ULTRACOMM2-PCI-16650
OMG-ULTRACOMM2-PCI-16750
OMG-ULTRACOMM422-PCI
OMG-ULTRACOMM422-PCI-SS
OMG-ULTRACOMM422-PCI-SX
