温度 » 温度过程控制器和电源开关装置 » 台式和壁挂式控制器 » CS8DPT/CS8EPT
PLATINUM系列通用台式数字控制器
UL和cUL
通用输入：热电偶，RTD，热敏电阻，过程电压/电流和应变
易于配置和使用
带可选RS232 / 485和以太网通信的标准USB
高准确率
内部5A SSR控制输出
5年保修
双位或6位显示标准，表示设定值和实时过程
辅助输出驱动更高电流的SSR
完全可编程彩色显示器，标准
工作电流范围为90至240 Vac @ 50/60 Hz
产品描述

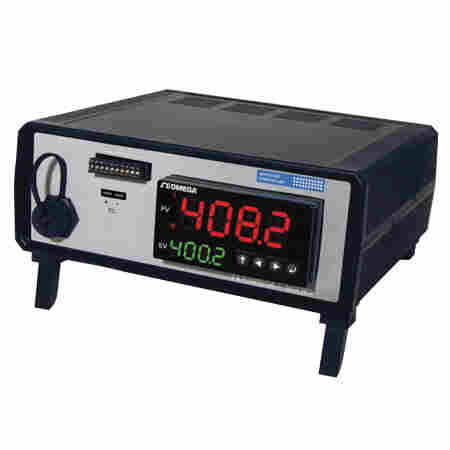

The OMEGA® CS8DPT/CS8EPT is a portable benchtop digital controller and with a large color-changing display. This benchtop controller features 4 Digit dual LED or 6 Digit displays that can be programmed to change color between Green, Amber, and Red at any setpoint or alarm point. Other options include, serial communications, and Ethernet.
This universal temperature and process instrument handles 10 common types of thermocouples, multiple RTDs,thermistors and several process (DC) voltage & current ranges, and strain type of inputs.
Specifications
Accuracy: See table on Spec Sheet for details
Resolution: 1°/0.1°; 10 µV process
Temperature Stability:
RTD: 0.04°C/°C
Thermocouple: 25°C (77°F); coldjunction compensation of 0.05°C/°C
Process: 50 ppm/°C
CMRR: 120 dB
A/D Conversion: Dual-slope
Reading Rate: 20 samples per second
Digital Filter: Programmable
Display: 4-digit or 6-digit, 9-segment LED; Red, Green, and Amber, and programmable colors for process variable, setpoint and temperature units
Input Types: Thermocouple, RTD, thermistor, analog voltage, analog current and strain
Thermocouple Type (ITS 90): J, K, T, E, R, S, B, C, N, L
RTD Input (ITS 68): 100/500/1000 Ohm Pt sensor; 2-, 3- or 4-wire; 0.00385 or 0.00392 curve
Thermistor Input: 2252 Ohm, 5K Ohm, 10K Ohm
Voltage Input: 0 to 100 mV, 0 to 1 Vdc, 0 to 10 Vdc
Input Impedance: 10 MO for 100 mV, 1 MO for 1 or 10 Vdc
Current Input: 0 to 20 mA (5 O load)
Strain Input: 0 to 50, 0 to 100 mV
Configuration: Differential
Polarity: Bipolar
Decimal Selection: None or 0.1 for temperature; None, 0.1, 0.01 or 0.001 for process
Control Output: 5A SSR (internal), 3A relay max, analog process output
Excitation: Firmware selectable to 5, 10, 12, and 24Vdc @ 25mA
Network and Communications
Ethernet: Standards compliance IEEE 802.3 10 Base-T
Supported Protocols: TCP/IP, ARP, HTTPGET
RS232/RS485: Selectable from menu; both ASCII and Modbus protocol selectable from menu; programmable 1200 to 115K baud; complete programmable setup capability; program to transmit current display, alarm status, min/max, actual measured input value and status
Connection: USB, Ethernet (option), Series (option)
General
Power: 90 to 240 Vac, 50 to 60 Hz
Dimensions: 236W x 230D x 108mmH (9.3'x9.1'x4.3')
Weight:1.13kg (2.5lb)
Note: Power cords are available from OMEGA.
Embedded Internet
This OMEGA benchtop devices can serve Web pages over an Ethernet LAN or even over the Internet, making it possible to monitor and control a process through a Web browser (such as Microsoft Internet Explorer®) from anywhere in the facility or anywhere in the world.
Remote Control
For example, using an CS8DPt Series temperature controller to control a heater, an engineer can monitor the temperature, change setpoints or alarm points, turn the heater on and off, or make other modifications from anywhere on the local network or anywhere on the Internet. The Web pages are easily customized, and secure, password protected access to the devices is easily controlled. And it requires absolutely no special software on the engineer’s computer to view the data and “supervise” the controller— nothing other than a Web browser.
E-Mail and Alarm
In fact, the Cs8DPt controller can even send an e-mail to the engineer (or anyone he or she chooses) about an alarm condition or to update the status. Leveraging the technology of the Internet, the engineer could receive a message from the controller on an Internet-enabled pager or cell phone.
Most remarkable is that all this can be accomplished without a computer. The OMEGA® CS8DPt controller with fully loaded communication options connects directly to the Ethernet network—not to the serial port of a computer functioning as a “server” and “master” to “slave” instruments connected through serial communications. With the loaded C24 option, these devices are also available with RS232 and RS485, and MODBUS serial communications.
产品编号 产品描述
CS8DPT 4 Digit Benchtop controller, universal input (TC, RTD, PV, Strain)
CS8EPT 6 Digit Benchtop controller, universal input (TC, RTD, PV, Strain)
CS8DPT-C24-EIP-A 4 Digit Benchtop controller with
CS8EPT-C24-EIP-A 6 Digit Benchtop controller with
Power Cord Option
Power Cord-Molded Power cord with connector for North America (US, Mexico, Canada), Standard 120 Vac
Power Cord-DM Power cord with connector for Denmark
Power Cord-E-10A Power cord with connector for Continental Europe
Power Cord-IT Power cord with connector for Italy or Ireland
Power Cord-SE Power cord with stripped ends (no connection), all countries 250 Vac max
Power Cord-UK Power cord with connector for United Kingdom
CS8DPT
CS8EPT
CS8DPT-C24-EIP-A
CS8EPT-C24-EIP-A
