LDP6-CDC10
1/8 DIN数字面板仪表，适用于直流电压和电流输入

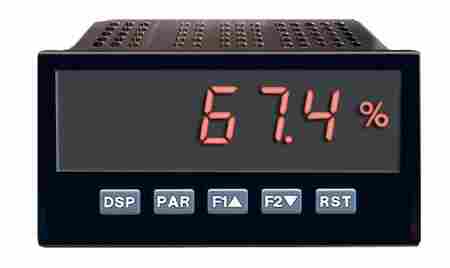

DP63600-DC
1/8 DIN数字面板仪表，适用于直流电压和电流输入
Universal DC Input 1/8 DIN (50 mm x 97 mm)
Green Display or Red Sunlight-Readable Display
41/2-Digit, 14 mm (0.56") LED
4 V (300 Vdc Max) and 5 Current (2A dc Max) Ranges
3 Resistance Ranges - 10 Kù Max
Field-Upgradeable Option Cards
AC and DC Powered Versions
NEMA 4X (IP65)
The DP63600 Series panel meters offer many features and performance capabilities suitable for a wide range of industrial applications. These meters accept universal DC voltage/current inputs. The optional plug-in output cards allow the opportunity to configure the meter for present applications, while providing easy upgrades for future needs.
The meters employ a bright, 14 mm (0.56") LED display. The unit is available with a red sunlight readable or a standard green LED. The intensity of display can be adjusted from dark room to sunlight readable, making it ideal for viewing in variable light applications.
The meters provide a max and min reading memory with programmable capture time. The capture time is used to prevent detection of false max or min readings which may occur during start-up or unusual process events.
The meters have 4 setpoint outputs, implemented on plug-in option cards.The plug-in cards provide dual form “C” relays (5A), quad form “A” (3A), or either quad-sinking or quad-sourcing open collector logic outputs. The setpoint alarms can be configured to suit a variety of control and alarm requirements. Communication and bus capabilities are also available as option cards; these include RS232, RS485, and MODBUS.
注释: *Software is free. Download from omega.com
Comes with complete operator’s manual.
Note: Adding option cards—meters can be fitted with up to 3 optional plug-in cards, however, only 1 card from each function type can be installed at a time. The function types include setpoint alarms, analog output and communications. The cards can be installed initially or at a later date. Each optional plug-in card is shipped with installation and programming instructions.
产品型号/产品描述
Display Meter Only, No Outputs
DP63600-DC Universal DC inputs, red display, 85 to 250 Vac, 50/60 Hz
DP63600-DC-LV Universal DC inputs, red display, 11 to 36 Vdc, 24 Vac
DP63600-DC-GN Universal DC inputs, green display, 85 to 250 Vac, 50/60 Hz
DP63600-DC-GN-LV Universal DC inputs, green display, 11 to 36 Vdc, 24 Vac
Optional Plug-in Output Cards (Field Installable)
Setpoint Alarms (Only 1 Alarm Card Can Be Installed Into Base Meter)
LDP6-CDS10 Dual setpoint relay output card
LDP6-CDS20 Quad setpoint relay output card
LDP6-CDS30 Quad setpoint sinking open collector output card
LDP6-CDS40 Quad setpoint sourcing open collector output card
Analog Output
LDP6-CDL10 Analog output card
Communications (Only 1 Communications Card Can Be Installed Into Base Meter)*
LDP6-CDC10 RS485 serial communications output card with terminal block
LDP6-CDC1C Extended RS485 serial communications output card with dual RJ11 connector
LDP6-CDC20 RS232 serial communications output card with terminal block
LDP6-CDC2C Extended RS232 serial communications output card with 9-Pin D connector
LDP6-CDC40 MODBUS communications card
LDP6-CDC4C Extended MODBUS communications card with dual RJ11 connector
