1-385V-U13-316SS
温度 » 铠装热电偶, 铠甲头和套管组装 » 铠装热电偶 » SERIES 260V and 385V

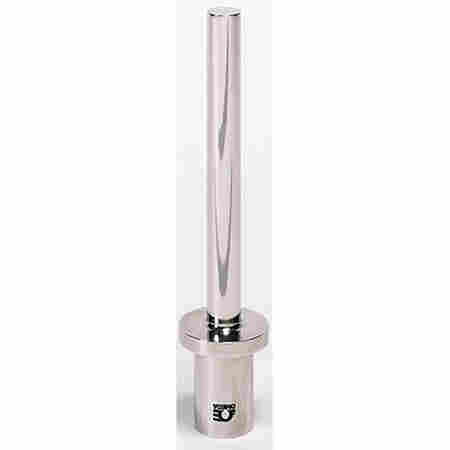

Van Stone Thermowells for 1/4 and 3/8 Inch Diameter Elements
RoHS
Available in Carbon Steel and Stainless Steel
Standard Insertion Lengths from 2 to 22 Inches
产品描述
Application:
260V series fits standard length 1/4" diameter elements. 385V series fits standard length 3/8" diameter elements.
Connection Size:
Standard wells fit 1" lap joint flanges. Other sizes also available. Prices below are for 1" Van Stone Wells. Consult factory for prices on other sizes.
Materials:
Carbon Steel (C-1018), A.I.S.I. 304, A.I.S.I. 316 and Monel are standard. Other materials are available.
Backing Flange:
When desired, a carbon steel lap joint flange can be supplied with these wells. When ordering, specify flange pressure.
Series 260V and 385V
All dimensions in inches.
* NPSM internal pipe thread will accept both NPT and NPS male threads.
Model No. Element
Length
A Insertion Length
U Shank Diameter
Q Bore
Diameter
Q
1-260V-U 2
-U 4
-U 7
-U10
-U13
-U16
-U22 4
6
9
12
15
18
24 2
4
7
10
13
16
22 3/4
3/4
3/4
3/4
3/4
3/4
3/4 .260
.260
.260
.260
.260
.260
.260
1-385V-U 2
-U 4
-U 7
-U10
-U13
-U16
-U22 4
6
9
12
15
18
24 2
4
7
10
13
16
22 7/8
7/8
7/8
7/8
7/8
7/8
7/8 .385
.385
.385
.385
.385
.385
.385
Maximum Fluid Velocity—feet per second
Well Type Material Insertion Length – “U”
2 4 7 10 13 16 22
260V
and
260F Carbon Stee1.2) 67.0 (42.7) 34 20.6 13.7 7.4
A.I.S.79) 192 (99.3) 69.7 (59.6) 35.4 21.5 14.3 7.7
Mone9.8) 61 (47.7) 31 18.8 12.5 6.7
385V
and
385F Carbon Stee4.3) 91.3 (50.6) 45.7 27.6 18.5 10
A.I.S.11) 258 (117) 95.2 (70.3) 47.6 28.8 19.3 10.4
Mone3.3) 83.3 (56.0) 41.6 25.2 16.9 9.1
Where single values appear in the velocity tables, these may be considered safe for water, steam, air or gas. In the shorter insertion lengths, consideration is given to the velocity pressure effect of water flowing at higher velocities. The values in parentheses, therefore, represent safe values for water flow, while the unbracketed values may be used for steam, air, gas and similar density fluids.
产品编号 产品描述
Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.
1-260V-U2-304SS Van Stone Thermowell, Bore Size 0.260" , Insertion Length 2", 304 SS
1-260V-U10-316SS Van Stone Thermowell, Bore Size 0.260" , Insertion Length 10", 316 SS
1-385V-U22-304SS Van Stone Thermowell, Bore Size 0.385" , Insertion Length 22", 304 SS
产品编号
Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.
1-260V-U2-304SS
1-260V-U10-316SS
1-385V-U22-304SS
产品型号
1-260V-U10-304SS
1-260V-U10-316SS
1-260V-U13-304SS
1-260V-U13-316SS
1-260V-U16-304SS
1-260V-U16-316SS
1-260V-U2-304SS
1-260V-U2-316SS
1-260V-U22-304SS
1-260V-U22-316SS
1-260V-U4-304SS
1-260V-U4-316SS
1-260V-U7-304SS
1-260V-U7-316SS
1-385V-U10-304SS
1-385V-U10-316SS
1-385V-U13-304SS
1-385V-U13-316SS
1-385V-U16-304SS
1-385V-U16-316SS
1-385V-U2-304SS
1-385V-U2-316SS
1-385V-U22-304SS
1-385V-U22-316SS
1-385V-U4-304SS
1-385V-U4-316SS
1-385V-U7-304SS
1-385V-U7-316SS
