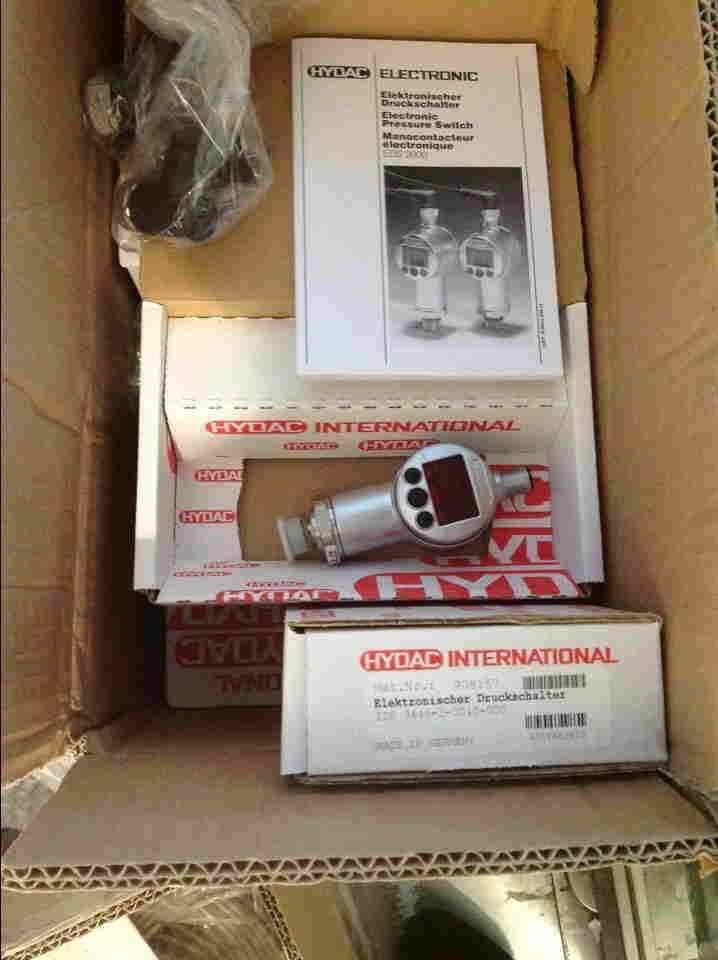

hydac传感器样品展示
hydac传感器可用版本：标准; ATEX; CSA
hydac压力传感器系列HDA4100配备有陶瓷压力测量细胞与厚层的DMS，hydac压力传感器这是专门为在低压范围*压力测量开发的。 4... 20 mA或0... 10V启用连接到HYDAC电子有限公司和所有测量和控制设备的联动，以市售的控制和调节装置。hydac压力传感器的应用在于液压，气动，特别是在制冷和空调，食品和制药工业中的应用的低压力范围的主要领域。
hydac压力传感器参数
精度±0.5％FS类型。
测量范围：高达2.5巴的*
高度的温度
*的EMC特性
非常紧凑的设计
令人信服的价格/收益比
也可与ATEX，CSA
Available versions: For smelting works and steel mills
This high-precision pressure transducer was specially developed and adjusted for the sophisticated measurement tasks in smelting and steel works technology. The device is equipped with a very robust sensor cell with a thin-film DNS which is fitted on a stainless steel diaphragm. With its outstanding data with respect to temperature influence (temperature drift for zero point and range both lie at a maximum of ±0.01% FS/°C) and accuracy (±0.15% FS typ.), it is ideally designed for utilisation under the environmental conditions prevailing there. The outstanding EMC properties ensure signal stability with the hardest, high-frequency, electromagnetic disturbance variables.
Accuracy ±0.15% FS type.
Measurement ranges: between 0 ... 6 bar and 0 ... 600 bar
Specially adjusted for the sophisticated measurement tasks in smelting and steel works.
Very robust sensor cell
Very low temperature errors
Outstanding EMC properties
Excellent long-term stability
