AE1000-SW 4P

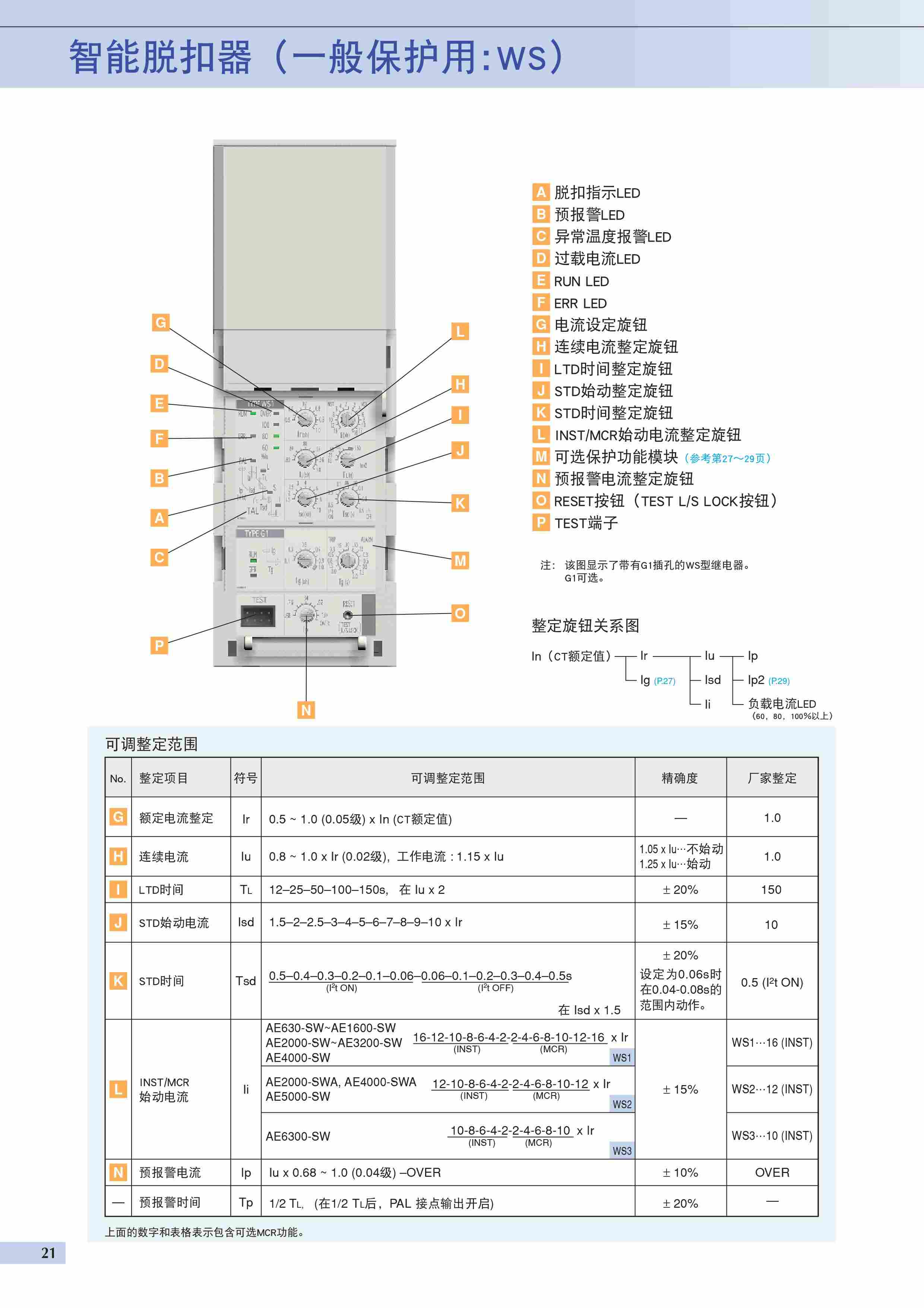

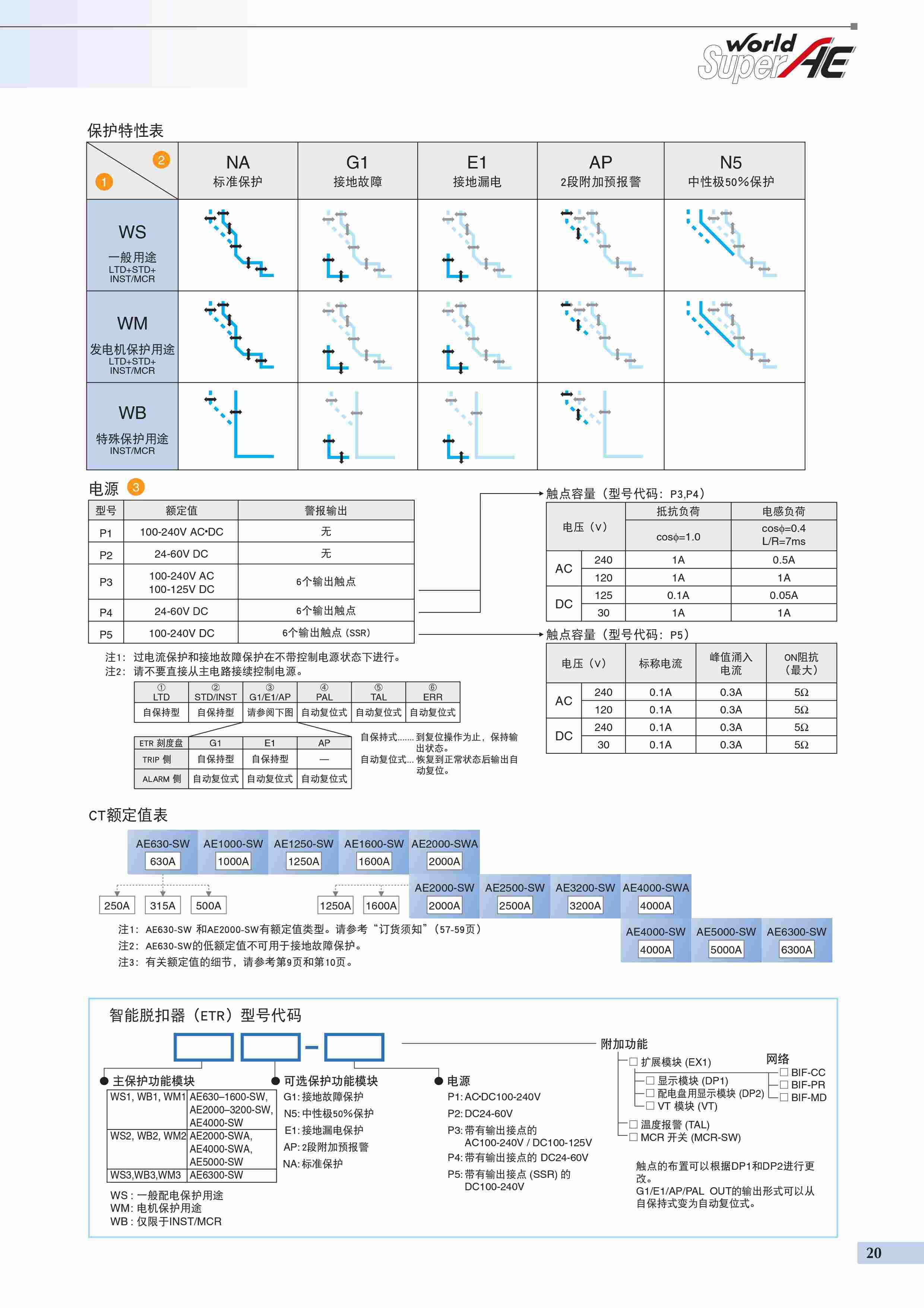

1、AE-SW系列包括：一个WS1（2）NAP3型智能脱扣器（AC100-240V/DC100-125V）带输出端子，分励脱扣装置（SHT，100-250VAC。DC）
辅助接点AX6（3A3B）、OCR报警（AL）、合闸线圈（CC）、失压脱扣装置（UVT组合）、电动储能（MD组合）、门框架（DF）。
2、AE2000-SWA与AE4000-SWA母排的接线方式只有行垂直。
1、AE-SW系列包括：一个WS1（2）NAP3型智能脱扣器（AC100-240V/DC100-125V）带输出端子，分励脱扣装置（SHT，100-250VAC。DC）
辅助接点AX6（3A3B）、OCR报警（AL）、合闸线圈（CC）、失压脱扣装置（UVT组合）、电动储能（MD组合）、门框架（DF）。
分断容量
Icu-415V (kA)
FFC FF
3P (RMB) 4P (RMB) 3P (RMB) 4P (RMB)
T2S160 PR221DS-LSI R10-100 50 - - 2,679 3,347
T2S160 PR221DS-LSI R160 50 - - 2,915 3,772
T4S250 PR221DS-LSI R100-250 50 - - 3,526 4,546
T5S400 PR221DS-LSI R320-400 50 - - 3,664 4,938
T5S630 PR221DS-LSI R630 50 - - 6,435 8,433
T6S630 PR221DS-LSI R630 50 - - 8,955 10,974
T6S800 PR221DS-LSI R800 50 - - 9,684 12,064
T4S250 PR222DS/P-LSI R100-250 50 - - 4,015 5,228
T5S400 PR222DS/P-LSI R320-400 50 - - 5,542 7,145
T5S630 PR222DS/P-LSI R630 50 - - 8,454 10,641
T6S630 PR222DS/P-LSI R630 50 - - 10,931 13,032
T6S800 PR222DS/P-LSI R800 50 - - 11,663 14,119
T4S250 PR222DS/P-LSIG R100-250 50 - - 4,416 5,753
T5S400 PR222DS/P-LSIG R320-400 50 - - 6,259 8,074
T5S630 PR222DS/P-LSIG R630 50 - - 9,455 12,769
T6S630 PR222DS/P-LSIG R630 50 - - 15,817 17,771
T6S800 PR222DS/P-LSIG R800 50 - - 16,497 18,782
T7S800 PR231/P-LSI R800 50 - - 10,170 13,406
T7S1000 PR231/P-LSI R1000 50 - - 13,932 18,115
T7S1250 PR231/P-LSI R1250 50 - - 18,052 22,792
T7S1600 PR231/P-LSI R1600 50 - - 22,722 28,856
T7S800 PR232/P-LSI R800 50 - - 11,876 15,713
T7S1000 PR232/P-LSI R1000 50 - - 15,832 20,952
T7S1250 PR232/P-LSI R1250 50 - - 18,711 22,830
T7S1600 PR232/P-LSI R1600 50 - - 25,336 31,567
T7S800 PR331/P-LSIG R800 50 - - 12,551 16,557
T7S1000 PR331/P-LSIG R1000 50 - - 16,736 22,076
T7S1250 PR331/P-LSIG R1250 50 - - 19,570 23,648
T7S1600 PR331/P-LSIG R1600 50 - - 26,651 32,662
T7S800 PR332/P-LI R800 50 - - 13,062 16,984
T7S1000 PR332/P-LI R1000 50 - - 17,418 22,645
T7S1250 PR332/P-LI R1250 50 - - 20,157 26,210
T7S1600 PR332/P-LI R1600 50 - - 24,994 31,742
T7S800 PR332/P-LSI R800 50 - - 13,584 17,978
T7S1000 PR332/P-LSI R1000 50 - - 17,418 23,046
T7S1250 PR332/P-LSI R1250 50 - - 22,452 25,113
T7S1600 PR332/P-LSI R1600 50 - - 26,856 34,091
T7S800 PR332/P-LSIG R800 50 - - 13,806 18,214
T7S1000 PR332/P-LSIG R1000 50 - - 18,407 24,284
T7S1250 PR332/P-LSIG R1250 50 - - 23,482 26,013
T7S1600 PR332/P-LSIG R1600 50 - - 29,316 36,254
T7S800M PR231/P-LSI R800 50 - - 15,015 17,635
T7S1000M PR231/P-LSI R1000 50 - - 20,853 24,836
T7S1250M PR231/P-LSI R1250 50 - - 24,277 29,287
T7S1600M PR231/P-LSI R1600 50 - - 28,645 34,887
T7S800M PR232/P-LSI R800 50 - - 17,362 19,929
T7S1000M PR232/P-LSI R1000 50 - - 21,977 26,221
T7S1250M PR232/P-LSI R1250 50 - - 25,402 30,412
T7S1600M PR232/P-LSI R1600 50 - - 30,646 37,111
