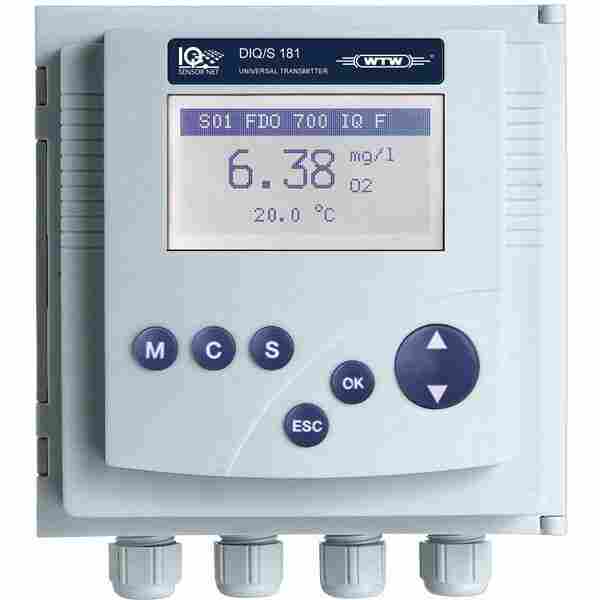

Universal monitor DIQ/S 181
The new system 181 – the digital and cost-efficient single parameter measuring point with proven IQ Sensor Net technology and matching fixed cable sensors
Low-cost alternative to analog measuring points
Matching digital IQ fixed cable sensors for pH/ORP, conductivity, O 2 and turbidity
Stable, robust and proven measuring technology
With its system 181, WTW offers a digital and cost-effective alternative to analog measuring points. For the parameters pH/ORP, conductivity, oxygen or turbidity, we offer our new IQ fixed cable sensors.
You will receive a cost-effective measuring point with proven WTW technology. In addition to the power supply via a wide range power supply (100-240VAC) or via 24 V, you will also have 2 power outputs and 3 relays at your disposal.
Variations
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| DIQ/S 181 | Dual IQ/System 181, Universal monitor for the connection of 1 digital IQ fixed cable sensor, with 2 analog outputs (0/4-20 mA) and 3 relays | 472100 | |||
| DIQ/S 181/24V | Like the DIQ/S 181, but for 24 V AC/ DC voltage supply | 472101 | |||
Technical Data
| Version | DIQ/S 181(/24V) |
| Connectable modules | DIQ/CHV (Cleaning Head Valve) |
| Parameters | pH/ORP, conductivity, O2, turbidity, temperature |
| Power supply | Wide range power supply (100-240VAC) or 24V |
| Sensor cable length | 10 m |
| Connectable sensors | 1 IQ fixed cable sensor |
| Max. cable length | 250 m (DIQ/JB and SNCIQ required sold by the meter) |
| Power outputs and relays | 2 x (0) 4–20 mA 3 x relays |
Matching and supplemental products
Digital IQ fixed cable sensors
IQSN system 282/284 monitor for up to 4 digital IQ sensors
Installation accessories
Accessories
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| DIQ/JB | Dual IQ/Junction Box to extend the cable length to a max. of 250 m | 472005 | |||
| PMS | Control panel mounting set for DIQ/S 282/284 | 480048 | |||
| SSH/IQ | Protective roof for DIQ/S 282/284 | 109295 | |||
| THS/IQ | Rail mounting set for DIQ/S 282/284 | 480050 | |||
| SNCIQ | Special two-pin IQ Sensor Net cable to extend the cable length to max. 250 m | 480046 | |||
| WMS/IQ | Wall mounting set for DIQ/S 282/284 | 480052 | |||
