OxiTop ® Control B 6 measuring system
OxiTop ® Control meter to determine soil respiration – lab procedure to determine the microbial soil respiration according to DIN ISO 16072

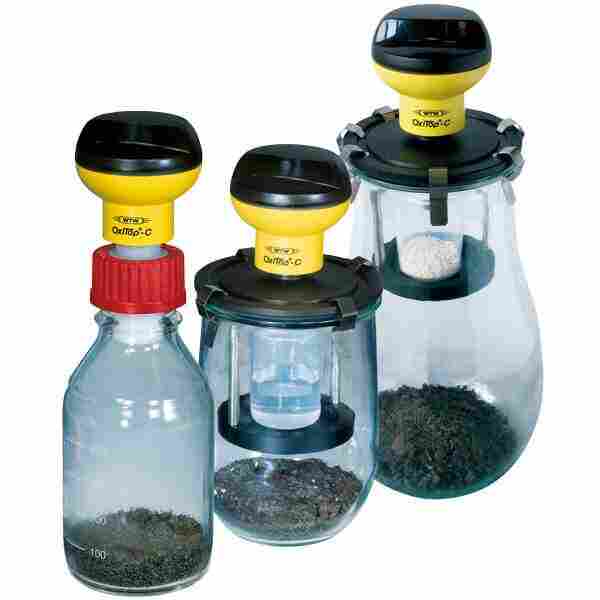

Different vessels for optimized adaptation to the application
Measurements for up to 99 days for special applications
Also suitable for AT4 measurements
The soil respiration measurement is used for the prognosis, inventory and control of remediation tasks, for biochemical degradation measurements of substances (pesticides, fungicides, fertilizer...) as well as to conduct toxicity tests.
This determination is possible with the OxiTop ® Control System and special measuring vessel tested in practice with much precision, easily and at a reasonable cost.
For soil with higher CO 2 development, the measuring vessel MG 1,0 is recommended. It has a larger opening (approx. 100 mm diameter) and you will easily be able to use large-volume CO 2 absorber vessels for the subsequent quantitative CO 2 determination.
To measure the soil respiration according to the AT4 directive, there is an especially designed package that contains measuring vessel with a capacity of 2.5 l as well as a special CO 2 absorber with indicator.
Variations
| Model | De |
Order no. | |||
|---|---|---|---|---|---|

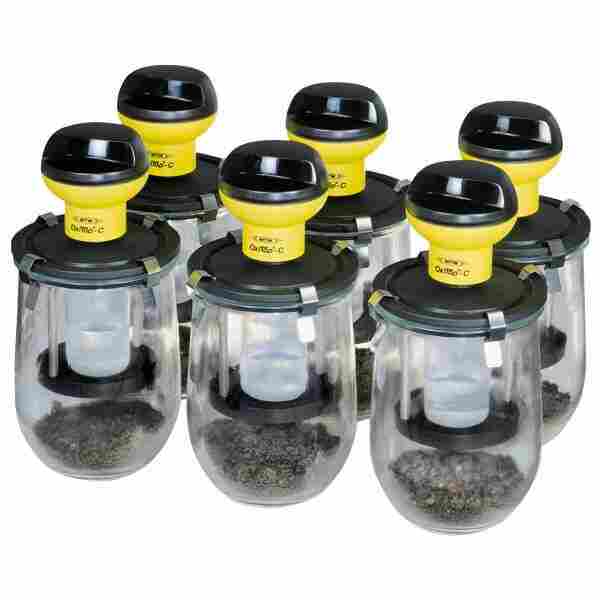

| OxiTop ® Control B 6M | 6 measuring points with 1.0 l container | 208232 | |||
| OxiTop ® Control B 6M-2.5 | 6 measuring points for AT4 measurement | 208231 | |||

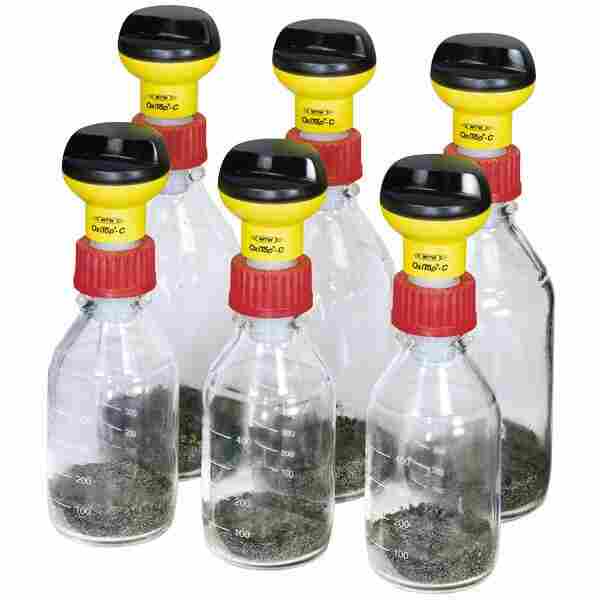

| OxiTop ® Control B 6 | 6 measuring points with 500 ml wide mouth bottle | 208230 | |||
Technical Data
| OC 110 | |
| Measuring interval | 0.5 h to 99 days |
| Data sets (depends on measuring interval) | 180 to 360 data sets per head |
| Measuring range BOD standard and routine | 0 to 4000 mg/l BOD |
| Accuracy | ±1 % v. Mw. ± 1hPa |
| OxiTop ® -C, OxiTop ® -C/B | |
| Measuring range | 500 to 1350 hPa |
| Pressure | 500 to 1350 hPa |
| BOD special | 0 to 400.000 mg/l BOD |
Matching and supplemental products
OxiTop ® /OxiTop ® -C measuring vessels and sample bottles
Thermo boxes
Thermostat cabinets
Overflow measuring flasks
Accessories
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| OxiTop® SK | Screw quiver | 209018 | |||
| NKI 500 | CO 2 Absorber | 209142 | |||
| OxiTop ® -C 2 | 2 measuring heads | 208823 | |||
| OxiTop ® -C | measuring head | 208830 | |||
| OxiTop ® -C/B | Measuring head biogas | 208831 | |||
| OxiTop ® PT | Leakage test material | 209334 | |||
| OxiTop ® -C 6 | 6 Measuring heads | 208822 | |||
| OxiTop ® OC 110 | Controller | 208207 | |||
| DI 45 | Seal GL45 | 209501 | |||
| NHP 600 | Sodium hydroxide pads | 209140 | |||
| NTH 600 | Nitrification inhibitor | 209331 | |||
| AK 540/B | Interface cable | 902842 | |||
| OxiTop® AD | Adapter | 209017 | |||
| OxiTop® AD/SK | Adapter/screw quiver for GL 45 thread | 209016 | |||
| VS 45 | Screw connection OxiTop ® AD | 209500 | |||
| ST-OxiTop ® | Storage rack for heads | 209010 | |||
