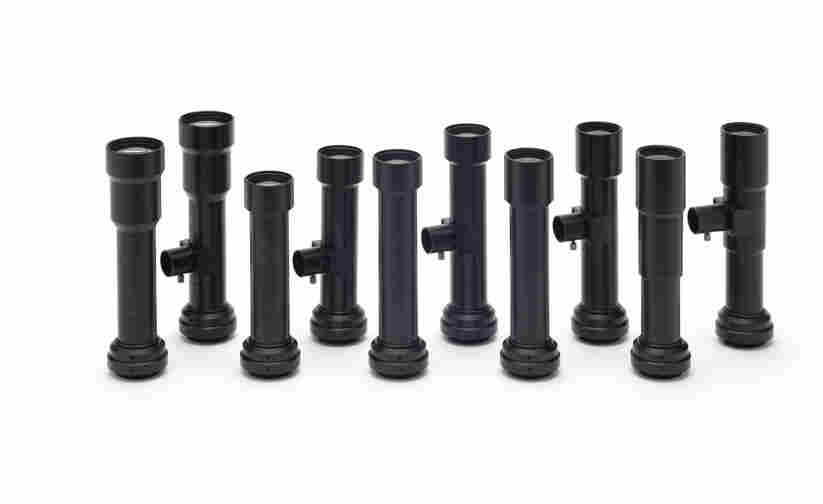

对应2/3英寸摄像机，高解像远心镜头。
可适应C接口200-500万像素摄像机。
用同轴落射光源时，也保持高对比度。
畸变率不高于0.01%
| 型号 | 倍率 | 有效FNO | 物体側 NA | WD | OI | 被写界深度 | 分解能 | TV畸变率 | 大适合 摄像机 | 外观图 |
|---|---|---|---|---|---|---|---|---|---|---|
| FT05-110 | 0.5x | 9.6 | 0.026 | 110mm | 255mm | 3.1mm | 12.9μ | 0.00% | 2/3 | |
| FT08-110 | 0.8x | 11.1 | 0.036 | 110mm | 236mm | 1.4mm | 9.3μ | 0.01% | 2/3 | |
| FT10-110 | 1.0x | 11.1 | 0.045 | 110mm | 248mm | 0.9mm | 7.5μ | 0.00% | 2/3 | |
| FT15-110 | 1.5x | 11.9 | 0.063 | 110mm | 249mm | 0.4mm | 5.3μ | 0.00% | 2/3 | |
| FT20-110 | 2.0× | 13.5 | 0.074 | 110mm | 251mm | 0.3mm | 4.5μ | 0.00% | 2/3 | |
| FT30-110R | 3.0× | 17.2 | 0.087 | 112mm | 256mm | 0.15mm | 3.9μ | 0.00% | 2/3 | |
| FT40-110R | 4.0x | 22.0 | 0.091 | 112mm | 260mm | 0.11mm | 3.7μ | 0.00% | 2/3 | |
| FT60-110R | 6.0x | 33.0 | 0.091 | 112mm | 270mm | 0.07mm | 3.7μ | 0.00% | 2/3 | |
| FT05C-110 | 0.5x | 9.6 | 0.026 | 110mm | 255mm | 3.1mm | 12.9μ | 0.00% | 2/3 | |
| FT08C-110 | 0.8x | 11.1 | 0.036 | 110mm | 236mm | 1.4mm | 9.3μ | 0.01% | 2/3 | |
| FT10C-110 | 1.0x | 11.1 | 0.045 | 110mm | 248mm | 0.9mm | 7.5μ | 0.00% | 2/3 | |
| FT15C-110 | 1.5x | 11.9 | 0.063 | 110mm | 249mm | 0.4mm | 5.3μ | 0.00% | 2/3 | |
| FT20C-110 | 2.0x | 13.5 | 0.074 | 110mm | 251mm | 0.3mm | 4.5μ | 0.00% | 2/3 | |
| FT30C-110R | 3.0x | 17.2 | 0.087 | 112mm | 256mm | 0.15mm | 3.9μ | 0.00% | 2/3 | |
| FT40C-110R | 4.0x | 22.0 | 0.091 | 112mm | 260mm | 0.11mm | 3.7μ | 0.00% | 2/3 | |
| FT60C-110R | 6.0x | 33.0 | 0.091 | 112mm | 270mm | 0.07mm | 3.7μ | 0.00% | 2/3 |
○记载数值为设计值。 ○接口是C接口 ○关于分解能，根据波长550nm的理论分解能。 ○景深假设1/2型相机320TV线的分辨水平计算值（少弥散圆40μm）
