7.5L60-I4相控阵探头|上海如庆电子科技一级代理，7.5L60-I4相控阵探头
奥林巴斯OLYMPUS/7.5L60-I4相控阵探头

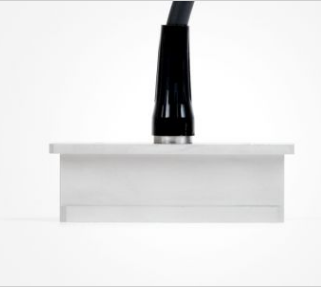

mmersion probes are designed to be used with a water wedge or in an immersion tank when the test part is partially or wholly immersed. They are longitudinal wave probes that can be set up for refracted shear-wave inspections using a Rexolite wedge.
| Part Number | Item Number |
Frequency (MHz) |
Number of Elements |
Pitch (mm) |
Active Aperture (mm) |
Elevation (mm) |
External Dimensions mm (in.) |
||
| L | W | H | |||||||
| 5L64-I1 | U8330323 | 5.0 | 64 | 0.60 | 38.4 | 10.0 | 50 (1.97) | 19 (0.75) | 25 (0.98) |
| 10L64-I1 | U8330012 | 10.0 | 64 | 0.50 | 32.0 | 7.0 | 50 (1.97) | 19 (0.75) | 25 (0.98) |
| 5L128-I2 | U8330031 | 5.0 | 128 | 0.60 | 76.8 | 10.0 | 83 (3.27) | 21 (0.83) | 35 (1.38) |
| 10L128-I2 | U8330004 | 10.0 | 128 | 0.50 | 64.0 | 7.0 | 83 (3.27) | 21 (0.83) | 35 (1.38) |
| 2.25L128-I3 | U8330351 | 2.25 | 128 | 0.75 | 96.0 | 12.0 | 102 (4.02) | 21 (0.83) | 35 (1.38) |
| 5L128-I3 | U8330379 | 5.0 | 128 | 0.75 | 96.0 | 10.0 | 102 (4.02) | 21 (0.83) | 35 (1.38) |
| 7.5L60-I4 | U8330955 | 7.5 | 64 | 1.0 | 64.0 | 7.0 | 73 (2.87) | 24 (0.94) | 25 (0.98) |
| These probes come standard with an OmniScan® connector and a 2.5 m (8.2 ft) cable or can be specially fitted with other connectors and cable lengths. | |||||||||
