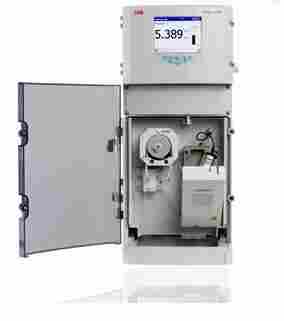

Ammonia analyzer Aztec AAM631
Providing continuous ammonia analysis for optimization of nutrient removal

The Aztec 600 ISE ammonia analyzer provides reliable and accurate measurement of ammonia concentrations for a wide variety of applications including source water monitoring and wastewater nutrient removal.

Overview

The Aztec 600 ISE ammonia analyzer uses a robust gas sensing ammonia electrode to provide accurate and reliable continuous measurement of the total ammonia nitrogen (TAN) concentration, that is the sum of the gas NH3 and the cation NH4+.
Featuring ABB's intuitive menu-driven software and the robust ISE sensing system with automatic calibration, users benefit from an analyzer that is both simple-to-operate and maintain.
Users benefits from:
  – Continuous measurement using ISE technology
  – Automatic 2-point calibration
  – Buffered measurement for maximum accuracy
  – Low reagent consumption (up to 3 months continuous measurement before reagent replenishment)
  – Temperature-controlled flowcell for measurement stability
  – Intuitive software with full colour graphical display
  – Data logging and graphical process trending
  – Full audit trail capability
  – Secure data archiving to SD Card

Data

• Measurement range
  0.050 to 1000 ppm NH3 (0.050 to 1000 mg/l)
• Measurement Principle
• ABB Aztec AAM631氨氮分析仪
  Gas-sensing ammonia probe
• Measurement mode
  Continuous
• Accuracy / maximum measured error
  ±5 % of reading or ±0.02 ppm for 0.05 to 500 ppm (whichever is the greater)
  ±7.5 % of reading for 500 to 1000 ppm
• Repeatability
• ABB Aztec AAM631氨氮分析仪
  ±2 % of reading or ±0.02 ppm (whichever is the greater)
• Response time
  Normal operating mode: T90 typically 5 mins
  EcoMode: T90 typically <7.5 mins
• Resolution
• ABB氨氮分析仪Aztec AAM631
  0.001 ppm for 0 to 10 ppm
  0.01 ppm for 10 to 100 ppm
  0.1 ppm for 100 to 1000 ppm
• Calibration
  2-point, automatic calibration
• Measurement units
  mg/l, ppm, ppb, μg/l

Fieldbus & HART

ABB’s freedom of choice offers the right driver for the major fieldbus protocols suitable for ABB devices.
The version matrix document shows for each protocol the software revision that’s compatible to the hardware and firmware revision of the device.ABB Aztec AAM631氨氮分析仪
