MAC两位三通电磁阀操作方式,67A-A1-DAB-DM-DDAJ-1JD

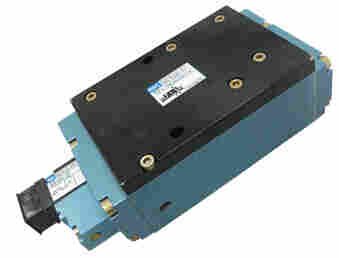

MAC电磁阀67A-A1-DAB-DM-DDAJ-1JD
MAC电磁阀67A-A1-AAA-DM-JDAA-1BA
两位三通，单电管接式电磁阀，3/4”NPT，DC24V，标准出线方式
MAC 67系列是由小型直接操作的四通电磁导阀（一次性空气阀制造）引导的三通平衡滑阀。 4路飞行员意味着低小工作压力 - 无活塞或弹簧 - 并且具有小的阻力。 飞行员的平衡设计意味着移动力一直很高，无论入口压力波动如何，响应时间都是可重复的。 有关（如UL，CSA，RoHS和CE）的信息，请访问我们网站上的获取支持页面。
介质 压缩空气，真空或惰性气体
压力范围 内先导：20to150PSI；外先导：真空到150PSI
流量范围 3/4”:14.5CV 1”:20CV
电压范围 正常电压的-15%到+10%
功耗 1.0W-12.7W; inrush:7.6VA Holding:4.8VA
反应时间 24VDC(2.4W):通电: 29ms 断电: 21ms
反应时间120VAC/60 :通电:15-20ms 断电:15-20ms
线圈 A级防尘线圈
The MAC 67 Series is a 3-way balanced spool valve piloted by a small direct operated 4-way solenoid pilot - a one-off in air valve manufacturing. The 4-way pilot means a low minimum operating pressure - no pistons or springs - and minimal resistance to shifting. The balanced design in the pilot means shifting forces are consistently high and response times are repeatable regardless of inlet pressure fluctuations. For information regarding certifications (such as UL, CSA, RoHS and CE) please visit the Get Support pages on our website.
