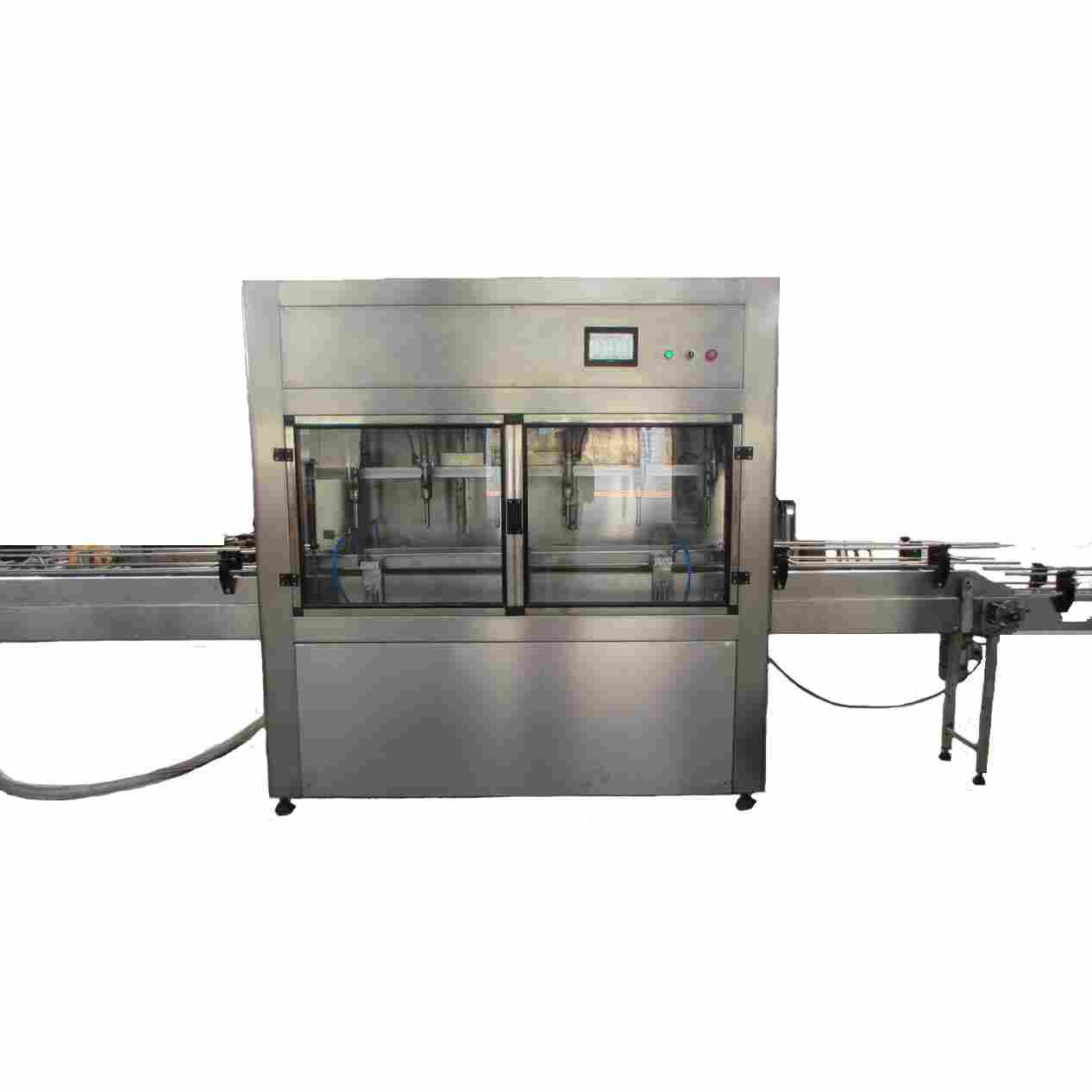

Automatic two-headed explosion-proof weighing filling line
The machine applicability:
The machine is suitable for products from low to high viscosity, can be used in the filling capacity from 50 l to 1000 l, accuracy is two over one thousand (depending on the specifications of the steel drum, product properties and feed pressure);Machine sealing and explosion-proof, with VAT automatically open, automatic positioning, automatic filling, automatic sealing, automatic output functions, such as nitrogen charging device and convulsions device to choose from.
Technical parameters:
1. The machine type: GFM - 200 KMS - AUTO;
2. The biggest weighing;300 kg;
3. The dividing value: 100 g;
4. The filling speed: 20-40 barrels/hours (depending on the specifications of the steel drum, product properties and feed pressure);
5. Canned precision: X (0.5) (0.2%);
6. Filling way: head/liquid level;
7. Voltage: 380 v, 3 p, 50/60 hz (customer specified)
8. Filling head number: 2
Filling system include:
- # SS304 stainless steel is completely sealed
- filling at the bottom of the head with a pneumatic feeding spoon, avoid after filling, the liquid will drip into iron drum and transmission line;
- manual/peel/gross weight filling. Add filling automatic fast and slow;
- SS304 stainless steel
- automatic liquid/liquid surface filling, automatic filling head into the barrel with reset function
- the tories more weighing sensors and instrumentation systems;
- the weight of weighing platform, with sensors and overload protection system;
- with product contact part of all is the SS304 stainless steel and PTFE seal;
- after power, filling head by integrity the spring automatically shut down, prevent product dripping
- after filling, the filling head automatic reset and safety interlock systems
- the machine explosion protection system, the standard for Exp DIIBT4
Control system include:
The Siemens PLC/Omron control system;
- with the switch on/off, stop button, etc
- filling difference or no material automatic alarm system
Optional item:
- PLC and DCS communication and synchronous control;
- before and after explosion power transmission line;
- nitrogen charging device
