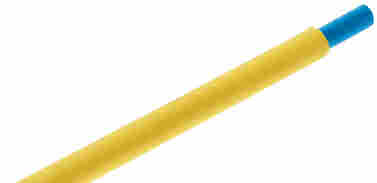

FESTO阻燃气管PAN-V0-8X1-GE,费斯托黄色气管
外径 10 mm
针对插入式接头的外径 8 mm
与流量相关的弯曲半径 45 mm
内径 6 mm
小弯曲半径 24 mm
和温度相关的工作压力 -0.95 ... 12 bar
材料的防火测试 UL94 V-0 (套管)
环境温度 -30 ... 90 °C
产品质量视长度而定 0.065 kg/m
气动连接 für Steckanschl. Außen-Ø 8 mm
肖氏硬度 A 72 +/-4、D 57 +/-3
气管的材料信息 聚酰胺 12、PVC-P
PAN-V0-6x1-BL 525466 塑料气管
PAN-V0-6x1-BR 525486 塑料气管
PAN-V0-6x1-GE 525482 塑料气管
PAN-V0-6x1-GN 525470 塑料气管
PAN-V0-6x1-RT 525474 塑料气管
PAN-V0-6x1-SW 160550 塑料气管
PAN-V0-6x1-WS 525478 塑料气管
PAN-V0-8x1-BL 525467 塑料气管
PAN-V0-8x1-BR 525487 塑料气管
PAN-V0-8x1-GE 525483 塑料气管
料气管 PAN-V0-6x1-BL产品代号: 525466 阻燃剂
聚酰胺管子，耐高温和抗机械负载， 不同的聚酰胺管子具有不同的特性。
外径按照
- PAN
- PAN-L
- PAN-V0
- 管子外径 4, 6, 8, 10, 12和16 mm
具有标准内径
- PP
- 管子内径3, 4和6 mm
螺旋管，气管长度预先裁定，气管两 头配旋转接头和密封圈。通过防折弹 簧可防止气管两端折弯。
- PPS
- 管子内径 4和6 mm
- 管子长度7.5和15 m
特点
- 阻燃， 符合UL 94 V0 (PVC 护套) PAN-V0
- 食品行业许用，符合90/128/EWG: PAN-L
根据德国有关法规，这种气管可用于 食品加工行业中。在食品加工行业中， 使用者每次使用前，应检验其化学稳 定性，保证气管无异味和损伤。
- 不含卤素: PAN, PAN-L, PAN-V0, PP, PPS
-不含湿漆干扰物质，符合FN 942 010 标准, 部分: PAN, PAN-L, PAN-V0, PP, PPS
- 经过德国技术控制委员会(TüV)测试: PAN, PAN-L, PP
介质
- 压缩空气和真空: PAN, PAN-L, PAN-V0, PP, PPS
- 压缩空气和真空, 水 (除了饮用水): PAN-L
管子颜色
- SI: 银色
- BL: 蓝色
- SW: 黑色
- GE: 黄色
- GR: 绿色
- RT: 红色
- BR: 棕色
- WS: 白色
- NT: 本色
适用的接头
PAN, PAN-L: QS, QS-F, CRQS, CK, CN
PAN-V0: QS-V0, QS-F, CRQS
PP: CK, CN
