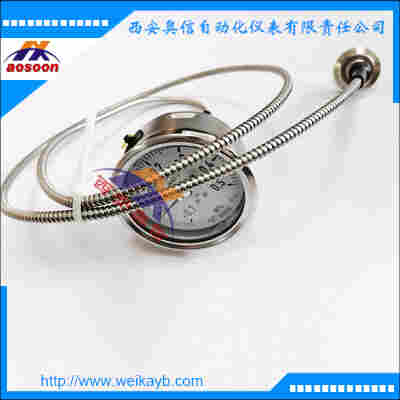

WIKA卫生隔膜压力表232.50.100+990.22卡箍压力表 0-1MPa威卡毛细管不锈钢压力表
威卡（ WIKA）根据EN 837-1和 ASME B40.100 的要求制造并压力表。该仪表具有防喷的安全功能，外壳背部有卸压装置。在发生故障时，过压可以从这里散逸释放。
233.50型壳体充液适用于高动压负载和振动的场合。
美国UE，德国WIKA，美国SOR，美国CCS等 Q：3349/365105
西安奥信-赵工：133电0927话8150
232.50.100 1 MPa Diaphragm Seal lower back mount
Measuring System 316L Version 1 small volume (for diaphragm seals)
Ingress protection: IP 65
class 1.0
Triangular bezel, stainless steel, polished, with clamp
Window: laminated safety glass
adjustable pointer
Pressure Gauge Standard: China
*WIKA*
with Serial number
Diaphragm seal system with 1 diaphragm seal
Assembly specification High-Side: 1 meter capillary; stainless steel
System fill fluid: KN 92 Medicinal white mineral oil; for pharmaceutical and food applications; FDA, USP, EP
Process temperature min.: + 10°C
Process temperature max.: + 80°C; for sterilisation (SIP) max. + 130°C
Ambient temperature pressure meas. min: + 10°C
Ambient temperature pressure meas. max: + 40°C
Diaphragm seal for hygienic applications
Tri-Clamp
Model 990.22 1" (pipe dimensions 25.4 x 1.6)
pipe standard: Pipe dimensions per BS 4825 part 3 or O.D.-Tube
Upper body material / main body material: Stainless steel 1.4435 (316L); UNS S31603
Diaphragm material: Stainless steel 1.4435 (316L); UNS S31603
Surface roughness wetted parts, welding seam excluded: Ra ≤ 0,76 µm (Ra 0.30 µin.) according to ASME BPE SF3
Clamp diameter: 50.5 mm
Label: WIKA standard without / with Tag-number
