OM-CP-PHTEMP2000

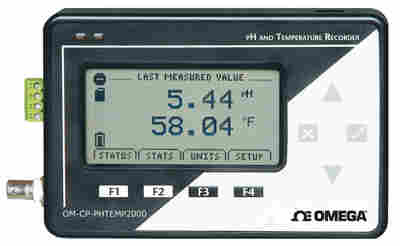

液晶显示pH值和温度数据记录仪
om-cp-phtemp2000
5年保修新产品！CE
液晶显示pH值和温度数据记录仪
om-cp-phtemp2000：pH和液晶显示温度数据记录仪
om-cp-phtemp2000
与欧米茄?phe-4200系列pH探针的作品
实时操作
可编程的工程单位
NIST校准
自动温度补偿
可编程的开始时间
该om-cp-phtemp2000是电池供电的，独立的pH值和温度数据记录仪LCD。该om-cp-phtemp2000将直接连接到许多常用的pH，ORP和安装在其一侧的ISE电极通过一个女性BNC连接器。温度补偿是通过连接一个电阻的单位自动完成。
存储介质是非易失性固态存储器，提供大的数据安全，即使电池已出。该om-cp-phtemp2000使得数据检索快捷方便。只需插入一个空的COM端口和用户友好的软件做休息。
规格
TEMPERATURE
Input: 100Ω Pt RTD
Measurement Range: -40 to 110°C (-72 to 230°F, 80 to 145 Ω)
Resolution: 0.01°C (0.001 Ω)
Calibrated Accuracy: ±0.15°C @ 25°C ambient (±0.015 Ω)
Input Connection: Removable screw terminal; 2-, 3- or 4-wire interface
PH/ORP/ISE
Input Connection: Female BNC
Measurement Range: -2.00 to 16.00 pH
Resolution: 0.01 pH (0.001 pH)
pH Accuracy: ±0.01 pH
pH EMI Susceptibility: <0.2 pH @ 3V/M, 80 MHz to 1 GHz
ORP/ISE Accuracy: ±0.1 mV
ORP/ISE Susceptibility: <10 mV @ 3V/M, 80 MHz to 1 GHz
Input Impedance: 1012 Ω typical
Start Modes: Software programmable immediate start or delay start up to six months in advance
Real-Time Recording: May be used with PC to monitor and record data in real time
DOT-MATRIX LCD
Dimensions: 35 H x 63 mm W (1.375 x 2.5")
Text: Configurable channel text size
Indicators: Power, status, memory
Backlight: Configurable w/auto shut-off and contrast adjustment
Memory: 131,071 readings per channel
Reading Rate: 1 reading every 2 seconds to 1 every 24 hours
Calibration: Digital calibration through software
Battery Type: 9V lithium or alkaline battery (included); user replaceable
Battery Life: 1 year battery life at 1 minute reading rate with display off;
30 days typical with continuous display use; optional AC adaptor available
Data Format: Date and time stamped °C, °F, K, R, Ω pH, V, mV,
engineering units specified through software
Time Accuracy: ±1 minute/month (at 25°C; RS-232 cable not in use)
Computer Interface: PC serial or USB (interface cable required); 115,200 baud
Software: XP SP3/Vista/7 and 8 (32-bit and 64-bit)
Operating Environment: -5 to 50°C (23 to 122°F), 0 to 95% RH (non-condensing)
Dimensions: 84 H x 122 W x 32 mm D (3.3 x 4.8 x 1.25")
Weight: 440 g (16 oz)
产品型号 产品描述
OM-CP-PHTEMP2000 pH and temperature data logger with LCD display
OM-CP-PHTEMP2000-CERT pH and temperature data logger with LCD display and NIST calibration certificate
选配件
OM-CP-IFC200 Windows software and 3.7 m (12') USB interface cable
OM-CP-BAT103 Replacement 9V lithium battery
OM-CP-110-PWR-2000 110 Vac power adaptor
OM-CP-220-PWR-2000 220 Vac power adaptor
PHE-4201 General purpose pH electrode
PR-11-2-100-1/4-6-E General purpose 100 Ω RTD probe, 6" sheath, 1/4" diameter
OM-CP-PHTEMP2000
美国Omega OM-CP-PHTEMP2000
