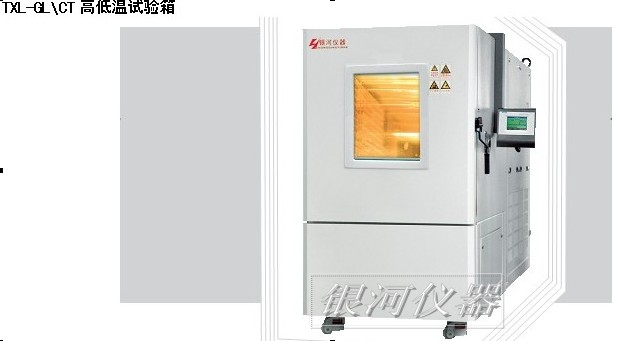

高低温试验箱

高低温试验箱

温度范围Temperature Range ﹣60~+130℃ 温度波动度Temperature Range fluctuation  ±0.5℃
温度均匀度Temperature uniformity  ≤2℃(≤100℃)  温度偏差Temperature windage ±2℃
升温时间Temp rise time  (20~130℃) ≤50min     降温时间Temp fall time(20~40℃) ≤70min
观察窗(mm)Odservation window size(WXHmm)1500×200
电脑接口Computer interface   RS458接口、RS232转换线、上位机操作软件(选配)Can choose to buy RS232/458computer interface and control-operation software
内部尺寸  280×410×300  外部尺寸595×785×995
顶置电机(mm)Top motor height(mm) 100    装机功率(KW)Power(kw)  1.4
低温恒温器运动功率(KW)Run power of low constant temp   1.2
电源Power sup port    CA220V 50Hz        重量约Weight(approc)  161
