| BX46临床应用生物显微镜技术规格 | ||
|---|---|---|
| 观察方法 | 明场、简易偏光 | |
| 照明器 | 透射柯拉照明 LED灯 | |
| Illuminator | Transmitted Köhler Illuminator： 30 W Halogen Lamp | |
| 聚焦 | 物镜转换器聚焦 | |
| 中间变倍体 | 手动转盘 | |
| Revolving Nosepiece | Manual：Standard (5 positions) | |
载物台 （机械的） | 右（左）手控机械载物台：X: 76 mm (3 in.), Y: 52 mm (2 in.) | |
| 平板载物台：Dimensions: 180 mm × 150 mm (7 in. × 6 in.) | ||
| 可旋转刻度载物台：旋转: 360度 | ||
| 精密旋转载物台：旋转: 360度 | ||
| 聚光镜 | 手动摆出式聚光镜：NA 0.9/ W.D. 2mm (1.25X–100X) (内置) | |
| 镜筒 | 宽视场（FN22） | 双目镜筒 |
| 倾斜式双目镜筒 | ||
| 三目镜筒 | ||
| 倾斜式三目镜筒 | ||
| 人体工程学倾斜式双目镜筒 | ||
| 可升降望远型可倾斜双目镜筒 | ||
| 外形尺寸 | 274.5 mm x 362 mm x 548 mm (标准配置) | |
| 重量 | 17 kg (标准配置) | |
Built to meet the demands of repetitive routine microscopy, the BX46 microscope has features that help you remain comfortable while you’re working. The stage is fixed so it is close to your desk’s surface, keeping it nearer to your hands. Samples are focused on using the movable nosepiece.

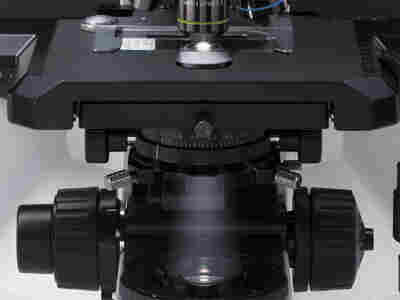

The low-position handles and low-torque stage make it easy to move the specimen with a simple finger tap so you can keep your arms and hands resting in a comfortable position.
The LED’s color rendering index is similar to a halogen bulb with a daylight filter. Stains look the same as if you were using a traditional daylight filtered halogen lamp and similar colors can be differentiated. Unlike a halogen light source, the LED has an estimated 20,000-hour lifetime.

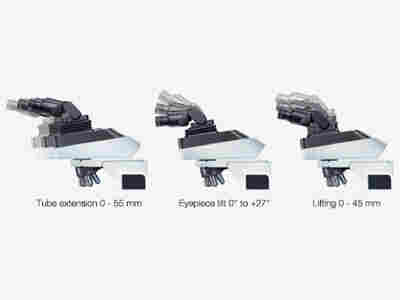

The tube moves up and down, tilts, and extends forward and back. With this one component, users of nearly any height can adjust the scope so that they’re comfortable.
