5RTD-F3131
OMEGA?薄膜DIN B类元件

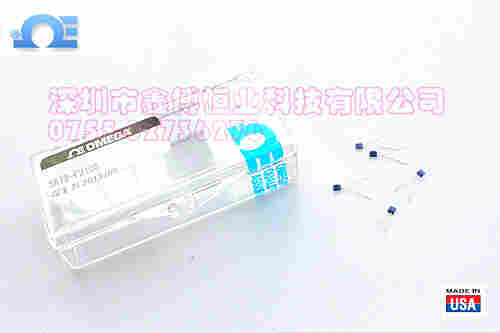

5 Pack RTD Elements
OMEGA?薄膜DIN B类元件
5 Pack RTD Elements:OMEGA?薄膜DIN B类元件
DIN Class "B" Accuracy (for Less Critical Applications)
Temperature Range: -70 to 500°C (- 94 to 932°F)
Economical 5-packs
Various Sizes Available
Resistance Specifications Include 100, 500, and 1000 Ohms at 0°C
European Curve: Alpha = 0.00385
OMEGA thin film DIN Class "B" RTD elements have a resistance tolerance of 100.00 ±0.12, 500.00 ±0.60, or 1000.00 ±1.20 at 0°C, and they meet the requirements of IEC751. They are sold with 0.2 mm diameter by 10 mm long gold palladium leads. Series WS elements have a donut shape that provides for convenient surface attachment using a screw, rivet, or fastener. These elements can be used as is with controllers and instruments, or as part of a sensor assembly.
产品型号/产品描述
5RTD-F3101 5 Platinum Thin Film RTD Elements, 100 Ohm, 2.0mm by 10.0mm, 10mm long leads
5RTD-F3141 5 Platinum Thin Film RTD Elements, 1000 Ohm, 2.0mm by 10.0mm, 10mm long leads
5RTD-F3102 5 Platinum Thin Film RTD Elements, 100 Ohm, 4.0mm by 5.0mm, 10mm long leads
5RTD-F3142 5 Platinum Thin Film RTD Elements, 1000 Ohm, 4.0mm by 5.0mm, 10mm long leads
5RTD-F3105 5 Platinum Thin Film RTD Elements, 100 Ohm, 2.0mm by 2.0mm, 10mm long leads
5RTD-F3145 5 Platinum Thin Film RTD Elements, 1000 Ohm, 2.0mm by
