TJ36-44007-3/16-12
过渡连接式热敏电阻探头
TJ36-44004 Series
新产品!

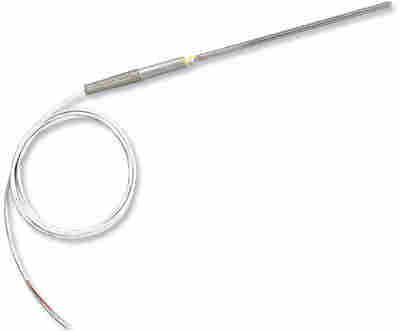

过渡连接式热敏电阻探头
TJ36-44004 Series:过渡连接式热敏电阻探头
TJ36-44004-1/8-12
Max. Temp: 150°C for Standard Probe
36" Insulated, 26 AWG Stranded Lead Wire
316SS Sheath
1/8, 3/16 and 1/4 " Diameter Sheaths Available
2252 Ohm, 0.2°C Elements Standard, Other 44000 Series Elements Also Available
The general purpose transition joint probe style is now available with any of our 44000 series thermistors as sensing elements.
The probe transitions to 36" of PFA-insulated two-conductor lead wire and terminates in stripped leads.
For Special Options Consult Sales or Temperature Engineering for Availability and Pricing.
View the Thermocouple Accuracy and Color Code charts
产品型号/产品描述
TJ36-44004-3/16-12 Transition Style Probe, 3/16 Dia., 12" long with 36" of PFA-insulated lead wire
TJ36-44004-1/8-12 Transition Style Probe, 1/8 Dia., 12" long with 36" of PFA-insulated lead wire
TJ36-44004-1/4-12 Transition Style Probe, 1/4 Dia., 12" long with 36" of PFA-insulated lead wire
TJ36-44004-3/16-12
TJ36-44004-1/8-12
TJ36-44004-1/4-12
TJ36-44004-1/4-12
TJ36-44004-1/8-12
TJ36-44004-1/8-3
TJ36-44004-1/8-6
TJ36-44004-3/16-12
注释: To order with a different Series 44000 element, replace the “44004” with the desired element.
No add’l cost for different 0.2°C interchangeability elements. Add 11 for 0.1°C interchangeability elements.
For phone plug termination, add “-PP” to end of model number and add 7 to price. Add 1/in for probe lengths over 12".
Probes under 12", no add’l charge. Add 1.40/ft. for leads over 36", and modify model number.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US)
订购示例: (1) TJ36-44004-1/8-12 Transition Style Probe, 12" long with 36" of PFA-insulated lead wire
TJ36-44007-3/16-12
TJ36-44007-3/16-12
