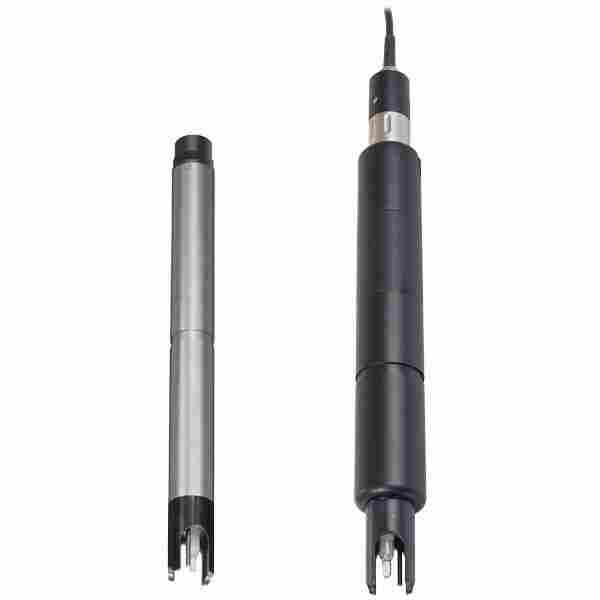

Digital IQ pH/ORP armatures

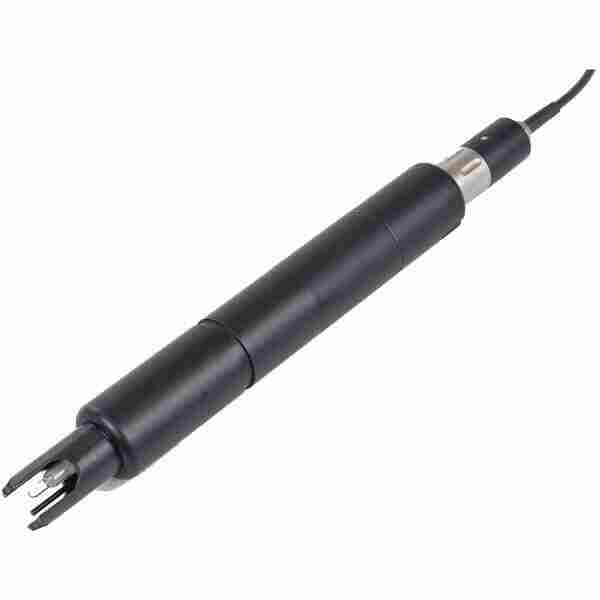

SensoLyt ® 700 IQ – digital pH/ORP armature with integrated preamplifier and temperature sensor as well as lightning protection to be connected to IQ Sensor Net
Stable signals by digital signal processing
Convenient by calibration in the lab and glass breakage detection
Reliable measured values by integrated temperature sensor
By storing calibration values within the sensor, a "pre-calibrated pH-measurement" can be generated. Due to our quick-lock, the sensor can be disconnected and - after laboratory calibration - re-connected at the site easily. Inconvenient calibrations in the field under adverse conditions can be completely eliminated if there is an IQ connection in the lab.
A special switch also allows automatic monitoring for glass breakage. The required replacement of the SensoLyt ® electrode is quick and uncomplicated.
The sea water model is optimized for the use in special media： All wetted parts are made of titanium and plastic and are therefore extremely resistant to corrosion.
Variations
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| SensoLyt ® 700 IQ/SET | SensoLyt ® 700 IQ including SensoLyt ® SEA pH electrode and 7 m connecting cable | 109173 | |||

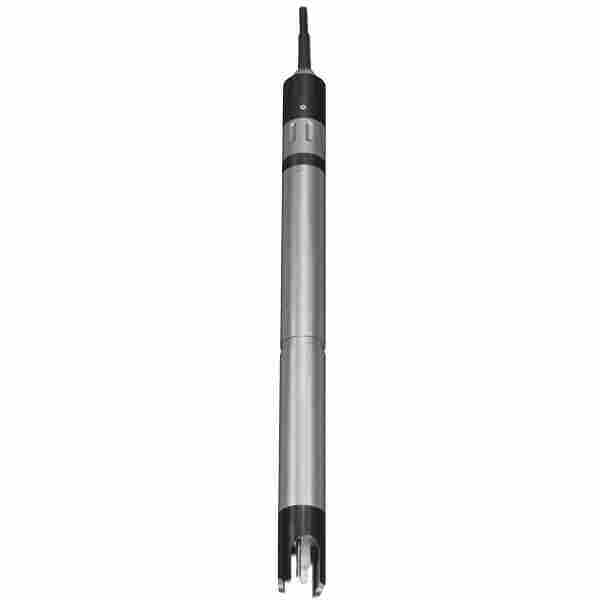

| SensoLyt ® 700 IQ SW | Like the SensoLyt ® 700 IQ, but as a sea water model | 109171 | |||
| SensoLyt ® 700 IQ/SET1 | SensoLyt ® 700 IQ including SensoLyt ® PtA ORP electrode and 7 m connecting cable | 109174 | |||
| SensoLyt ® 700 IQ | Digital pH/ORP fitting for SensoLyt ® electrode, with integrated preamplifier and temperature sensor (please order cable separately) | 109170 | |||
Technical Data
| Measuring principle | electro-chemical |
| Permissible overpressure | 6 … 10 bar (depending on the electrode) |
| Temperature measurement | Integrated NTC, -5 ... +60 °C |
| Measuring range | SEA: 2 … 12 pH SEA-HP: 4 … 12 pH DWA: 0 … 14 pH ECA: 2 … 12 pH PtA: ±2000 mV |
| Operating temperature | 0 ... +60 °C |
Matching and supplemental products
pH/ORP-single-rod electrodes
IQSN 2020 XT monitor/modules
IQSN 2020 XT Controller (without terminal)
IQSN system 282/284 monitors for up to 4 digital IQ sensors
Connecting cable for IQ sensors
Fixed cable IQ pH/ORP fitting
EX pH/ORP fittings & electrodes
Accessories
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| SensoLyt ® SEA-HP | pH single-rod electrode, measuring range 4 ... 12 pH, for installation into SensoLyt ® 700 IQ | 109118 | |||
| SensoLyt ® 700-SK | Protective basket to shield from pushing and impacts, for SensoLyt ® measuring chains in SensoLyt ® fitting | 109194 | |||
| SensoLyt ® DWA | pH single rod electrode, measuring range 0 ... 14 pH, for installation into SensoLyt ® 700 IQ | 109119 | |||
| SensoLyt ® PtA | ORP single-rod electrode, measuring range ± 2000 mV, for installation into SensoLyt ® 700 IQ | 109125 | |||
| SensoLyt ® ECA | pH single-rod electrode, measuring range 2 ... 12 pH, for installation into SensoLyt ® 700 IQ | 109117 | |||
| SensoLyt ® SEA | pH-single-rod electrode, Measuring range 2 ... 12 pH, for installation into SensoLyt ® 700 IQ | 109115 | |||
