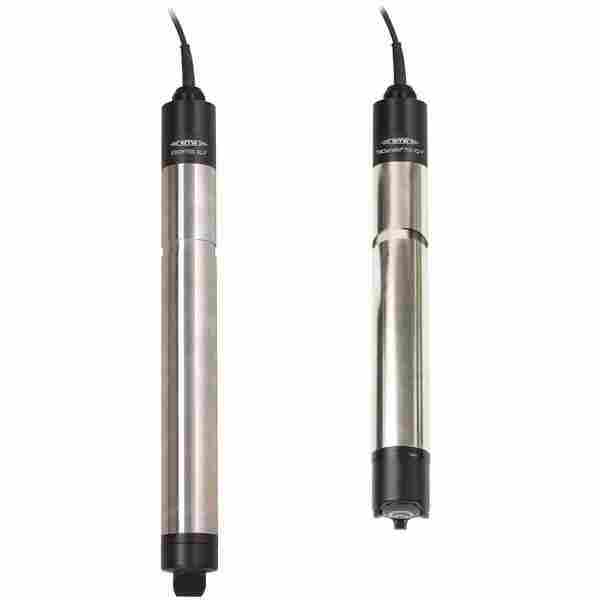

Digital IQ fixed cable sensors for dissolved oxygen
Optical or electro-chemical： The IQ fixed cable sensors for dissolved oxygen provide reliable measuring values for your single parameter measuring point
Save work, time and money with the calibration-free optical oxygen sensor
Safe data transfer
For wastewater, drinking water and in the process

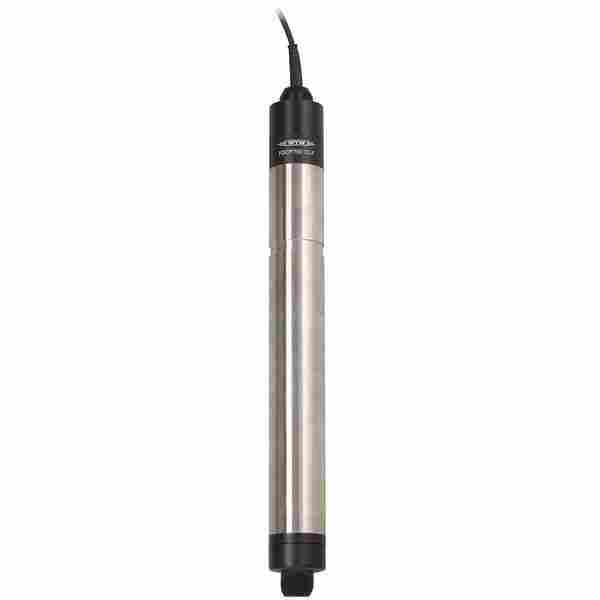

FDO ® 70X IQ F
The optical oxygen sensors can be used universally and have been optimized for the measurement and regulation of the O2 supply in wastewater treatment plants. The membranes of the calibration-free sensors offer different response times. With their 10 m fixed cables, they can be connected to the monitor DIQ/S 181(/24 V).

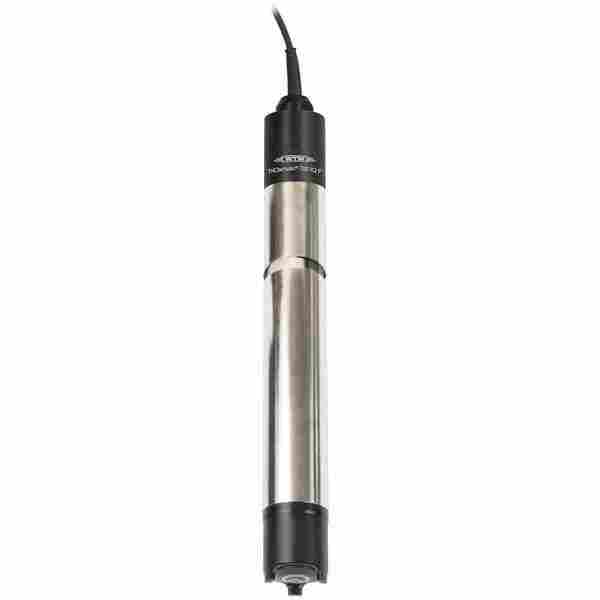

TriOxmatic ® 700 IQ F
For the TriOxmatic ® 700 IQ F, the capture of the dissolved oxygen is
Variations
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| TriOxmatic ® 700 IQ F | Electro-chemical oxygen sensor, for DIQ/S 181(/24V), with 10 m fixed cable, for DIQ/S 181(/24V) | 201643 | |||
| FDO ® 701 IQ F | Optical oxygen sensor, calibration-free for DIQ/S 181(/24V), with 10 m fixed cable and fast response time, for DIQ/S 181(/24V) | 201658 | |||
| FDO ® 700 IQ F | Optical oxygen sensor, calibration-free, for DIQ/S 181(/24V), with 10 m fixed cable for DIQ/S 181(/24V) | 201656 | |||
Technical Data
| FDO ® 700 IQ F | FDO ® 701 IQ F | TriOxmatic ® 701 IQ F | |
| Cable length | 10 m | 10 m | 10 m |
| Measuring ranges | |||
| O 2 concentration O 2 saturation | 0.1 mg/l 1 % | 0.01 mg/l 0.1 % | 0.01 mg/l 0.1 % |
| Ambient conditions | |||
| O 2 concentration O 2 saturation | 0 … 20.00 mg/l 0 … 200.0 % | 0 … 20.00 mg/l 0 … 200.0 % | 0.0 … 60.0 mg/l 0 … 600 % |
| Operating temperature | -5 … +50 °C | -5 … +50 °C | 0 … +60 °C |
| Temperature measurement | Integrated NTC, -5 … +50 °C | Integrated NTC, -5 … +50 °C | Integrated NTC, -5 … +60 °C |
| Sensor | 10 bar 2 bar | 10 bar 2 bar | 10 bar 2 bar |
| Resolution | |||
| Response time (at 25 °C) | t 90 < 150 s t 95 < 200 s | t 90 < 60 s t 95 < 80 s | t 90 180 s |
| Measuring principle | Optical | Optical | Electro-chemical |
Matching and supplemental products
DIQ/S 181
Mounting accessories (IQSN)
Accessories
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| RL-AG/Oxi | 50 ml cleaning solution for TriOxmatic ® 700 IQ F | 205200 | |||
| SNCIQ | Special 2-pin cable with shield. Order length in meters | 480046 | |||
| ZBK 600 | Accessories kit for TriOxmatic® 700 IQ F | 202620 | |||
| SF 300 | 1x cathode cleaner for TriOxmatic ® 700 IQ F | 203680 | |||
| SC.FDO ® 701 | Membrane cap for FDO ® 701 IQ F | 201655 | |||
| CH | Cleaning head for online sensors with a diameter of 40 mm, delivery includes 15 m compressed air hose | 900107 | |||
| DIQ/JB | Junction Box to extend the sensor cable | 472005 | |||
| SC-FDO ® 700 | Membrane cap for FDO ® 700 IQ F | 201654 | |||
| WP 600/2 | Replacement membrane heads for TriOxmatic ® 700 IQ F | 202850 | |||
| DIQ/CHV | Module for automatic, relay-controlled compressed air cleaning | 472007 | |||
