Single rod measuring chain for online pH/ORP measurement
SensoLyt ® & ProcessLine – pH measuring chains for all applications： For the SensoLyt ® armature, for the installation in a flow vessel or in a replacement fitting
For drinking water, wastewater or in the process
Also for high pressure and temperature conditions
Easy to maintain by easy measuring chain replacement
The SensoLyt® measuring chains with arming are easy to install and boast flexible measuring and application areas.
SensoLyt ® measuring chains without arming to install in flow vessels
The SensoLyt ® measuring chains without arming can be connected directly to a pH monitor pH 298 series. Depending on the application, you can install them into a flow vessel.
ProcessLine (PL) – for the population of replacement fittings
The special design of the process line electrodes makes them close to optimal in their accuracy, stability, speed and longevity to liquid electrolyte electrodes. For the use in pipelines, you can install them into the replacement fitting CHEMtrac 830 M.
Variations
| Model | De |
Order no. | |||
|---|---|---|---|---|---|

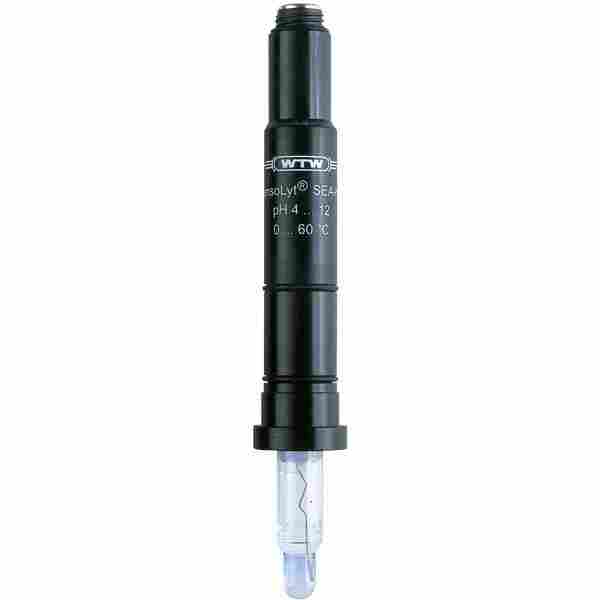

| SensoLyt ® SEA-HP | pH single rod measuring chain for use with increased pressure/temperature conditions, to be installed into the SensoLyt ® Fitting, measuring range 4 … 12 pH | 109118 | |||
| SensoLyt ® DWA | pH single rod measuring chain for drinking water applications to be installed into the SensoLyt ® Fitting, measuring range 0 … 14 pH | 109119 | |||

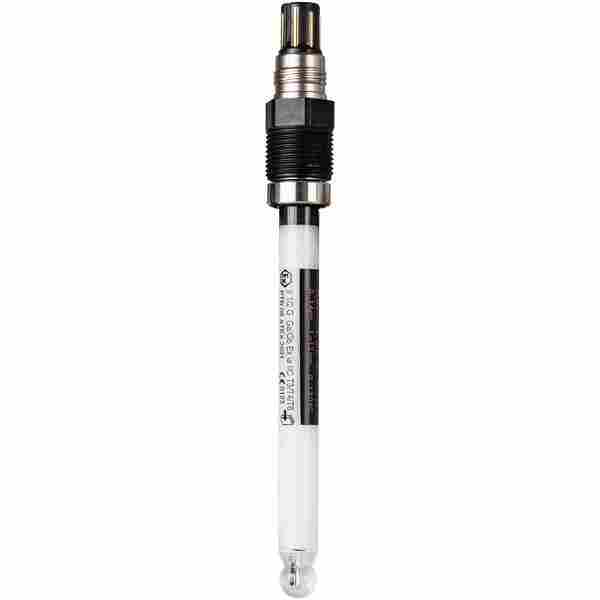

| PL 81-225pHT VP | pH single rod measuring chain VP screw plug head, measuring range 0...14 pH, for the installation into the CHEMTrac 830 M replacement fitting | 109236 | |||
| SensoLyt ® ECA | pH single rod measuring chain for normal contaminated wastewater to be installed into SensoLyt ® Fitting, measuring range 2 … 12 pH | 109117 | |||

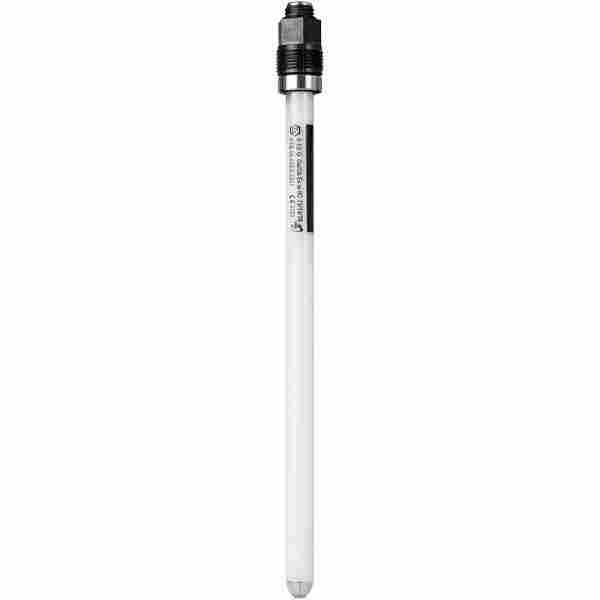

| PL 80-120pH | pH single rod measuring chain with S7 plug head, measuring range 0...14 pH | 109233 | |||
| SensoLyt ® SE | Like model SEA, but without arming for the installation into flow vessels | 109100 | |||
| SensoLyt ® PtA | ORP single rod measurement for strongly contaminated wastewater, for the installation into the SensoLyt ® Fitting, measuring range ±2000 mV | 109125 | |||
| SensoLyt ® DW | Like model DWA, but without arming to be installed into flow vessels | 109103 | |||
| SensoLyt ® SEA | pH single rod measuring chain for strongly contaminated wastewater, to be installed into the SensoLyt ® Fitting, measuring range 2 … 12 pH | 109115 | |||
| PL 82-225pHT VP | pH single rod measuring chain VP screw plug head, measuring range 0...14 pH, for the installation into the CHEMTrac 830 M replacement fitting | 109239 | |||
| PL 80-225pH | pH single rod measuring chain with S7 plug head, measuring range 0...14 pH, for the installation into the CHEMTrac 830 M replacement fitting | 109234 | |||

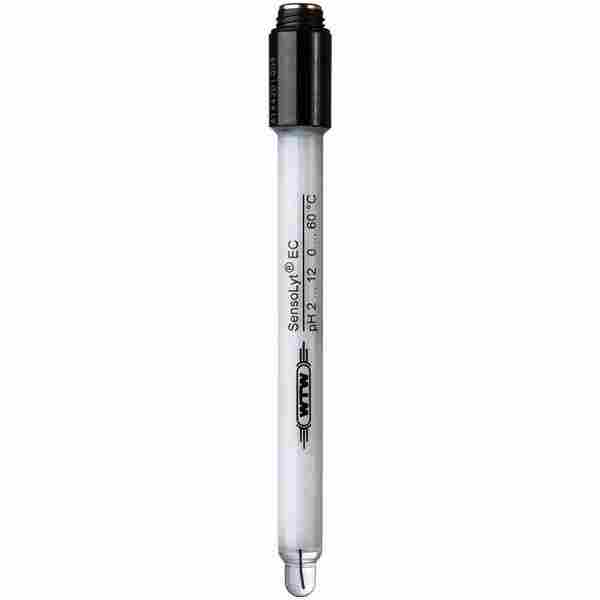

| SensoLyt ® EC | Like model ECA, but without arming, for the installation into flow vessels | 109102 | |||
| SensoLyt ® platinum | Like model PtA, but without arming for the installation into flow vessels | 105412 | |||
| PL 89-225Pt | ORP single rod measuring chain with S7 plug head, measuring range 0...14 pH, for the installation into the CHEMTrac 830 M replacement fitting | 109235 | |||
Technical Data
| Measuring chain (SensoLyt ® ) | SensoLyt ® SEA / SE* | SensoLyt ® SEA-HP | SensoLyt ® DWA / DW* | SensoLyt ® ECA / EC* | SensoLyt ® PtA / Pt* | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating conditions Overpressure Temperature | 10 bar / 20°C 1 bar / 60°C 0 ... 60 °C | 10 bar / 60°C 0 ... 60 °C | 6 bar / 20°C 1 bar / 60°C 0 ... 60 ° | 6 bar / 20°C 1 bar / 60°C 0 ... 60 ° | 10 bar / 20°C 1 bar / 60°C 0 ... 60 °C | ||||||||||||||||||||||||
| Temperature sensor | No | No | No | platinum 1000 | platinum 1000 | ||||||||||||||||||||||||
| Operating conditions Overpressure Temperature | 11 bar 0 … 130 °C | _H | _H | _H | _H | ||||||||||||||||||||||||
| Measuring range | 0 … 14 pH | _H | _H | _H | _H | ||||||||||||||||||||||||
| Measuring chain (ProcessLine) | PL 80-120pH | PL 80-225pH | PL 89-225Pt | PL 81-225pHT VP | PL 82-225pHT VP | ||||||||||||||||||||||||
| Measuring range | pH 2 ... 12 | pH 4 ... 12 | pH 0 … 14 | pH 2 ... 12 | ± 2000 mV | ||||||||||||||||||||||||
Matching and supplemental products
Digital IQ pH/ORP fittings
Digital IQ pH/ORP fixed cable fittings
Analog pH/ORP fittings
Technical buffering solutions (buffer bottles)
Test and maintenance equipment ORP
Analog pH/ORP field monitor
IQSN 2020 XT Controller (without terminal)
IQSN system 282/284 monitor for up to 4 digital IQ sensors
IQSN system 181 for a digital fixed cable sensor
Accessories
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| CHEMTrac 830 M | Manual replacement fitting made of stainless steel (1.4404) for pH measuring chains; thread DN25 | 109237 | |||
| TFK 150 | Temperature sensor for automatic temperature compensation, cable length 1 m | 102274 | |||
| TFK 325-EST-3 | Like TFK 328-EST, but cable length 3 m | 102287 | |||
| K 5 S | Coaxial electrode plug (extension cord), cable length 5 m | 108461 | |||
| AS 9-HI-6.0 | Connecting cable with wire end sleeves for the direct connection of high ohm pH measuring chains to the EcoLine ® or QuadroLine ® pH monitor, cable length 6 m | 108507 | |||
| TEP 4 | Technical buffering solution: pH 4,01 | 108700 | |||
| TFK 325-3 | Like TFK 325, but cable length 3 m | 102282 | |||
| TFK 325-EST | Temperature sensor (NTC) with R ½ inch NPT screw-in thread and welding socket (1.4571) for the installation into pipelines, cable length 1.5 m | 102281 | |||
| MZ WIS 40 IC 44 | welding socket (beveled) made of stainless steel (1.4404) for the installation into the CHEMTrac 830 M in pipelines; thread DN 25 | 108532 | |||
| VP 6-19/10 | VP 6-pin electrode plug for PL 81 ...and PL 82, open cable ends, cable length 10 m | 108455 | |||
| RH 28 | ORP buffering solution: pH 7, UH = 427 mV (CH) | 109740 | |||
| TEP 10 | Technical buffering solution: pH 10,00 | 108704 | |||
| TFK 325 | Temperature sensor for the automatic temperature compensation in waterous solutions, cable length 1 m | 102280 | |||
| TEP 7 | Technical buffering solution: pH 7,00 | 108702 | |||
| TEP 10 Trace | Technical buffering solution: pH 10.01 | 108703 | |||
| MZ WIS 40 ST 44 | welding socket (straight) made of stainless steel (1.4404) for the installation into the CHEMTrac 830 M into pipelines; thread DN 25 | 108533 | |||
