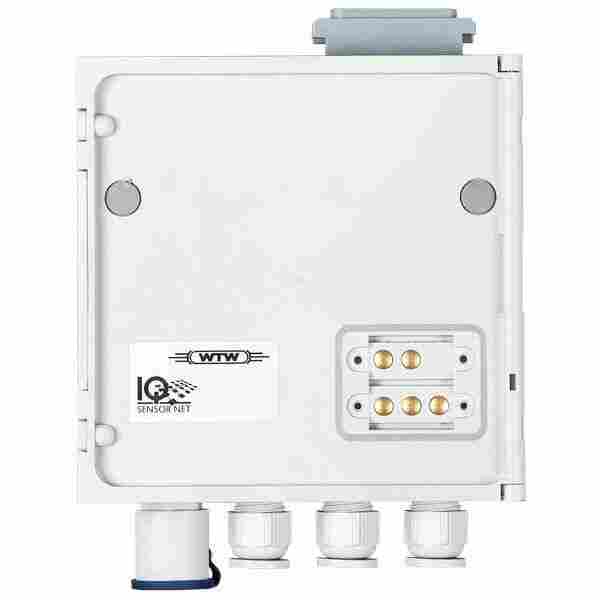

MIQ modules for outputs, inputs and communication
Module to transfer the measured values or with a
Can be combined in any configuration thanks to the modular system - no matter where, when or how
Simple installation - the stacking technique of the IQ Sensor Net saves additional installation materials, work effort and time
Integrated lightning protection ensures high operational safety in any weather
Depending on the requirements of your measuring situation, the suitable modules will be available for you to combine them as needed： For example, you will receive digital output modules for the MODBUS or PROFIBUS connection.
The analog output modules will expand your IQ Sensor Net by six relay or power outputs. We also offer a combined module with three power and three relay outputs. The analog output modules can be combined as required, up to a max. of 48 output channels (total of power outputs and relays in the system 2020).
With the modle MIQ/IC2, you will expand the system by two power inputs and you will also allow the connection of separate monitors and analyzers into the IQ Sensor Net .
Variations
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| MIQ/3-PR | Module IQ with PROFIBUS-DP connection (output module, digital) | 471027 | |||
| MIQ/R6 | Module IQ / relay 6 with 6 relay outputs (output module, analog) | 480013 | |||
| MIQ/CR3 | Module IQ / current relay 3, with 3 power and 3 relay outputs output module (analog) | 480014 | |||
| MIQ/IC2 | Module IQ / input Current 2 with 2 inputs for 0/4 - 20 mA signals (input module); every populated power input counts as an IQ sensor | 480016 | |||
| MIQ/C6 | Module IQ / Current 6 with 6 power outputs (output module, analog) | 480015 | |||
| MIQ/3-MOD | Module IQ with MODBUS RTU / RS 485 connection (output module, digital) | 471026 | |||
Technical Data
| Power supply | Directly via IQ Sensor Net |
| Inputs | MIQ/IC2: 2 x 0(4) … 20 mA |
| Cable screw connections | 4 cable screw connections M16 x 1,5 |
| Dimensions | 144 x 144 x 52 mm (W x H x D) |
| Housing | Polycarbonate with 20% glass fibre, protection class IP 66 |
| IQSN connections | 2 |
| Analog outputs | MIQ/C6: 6 x 0(4) … 20 mA MIQ/R6: 6 x relays MIQ/CR3: 3 x 0(4) … 20 mA, 3 x Relay |
| Digital outputs | MIQ/2-PR: PROFIBUS-DP MIQ/2-MOD: MODBUS RTU |
| Ambient conditions | Operating temperature: -20 °C … +55 °C Storage temperature: -25 °C … +65 °C |
Matching and supplemental products
MIQ/TC 2020 XT terminal/controller for up to 20 digital IQ sensors
MIQ/MC3 controller for up to 20 digital IQ sensors
IQSN-System 282/284 monitor for up to 4 digital IQ sensors
MIQ modules for power supply
MIQ modules for system expansion
Other MIQ modules
IQSN connecting cable
Accessories
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| WMS/IQ | Wall mounting set for MIQ modules | 480052 | |||
| THS/IQ | Rail mounting set for MIQ modules | 480050 | |||
| PMS | Control panel mounting set for MIQ modules | 480048 | |||
| SSH/IQ | Protective roof for MIQ modules | 109295 | |||
