IDS universal with electrodes pH 德国WTW plug head digital的产品资料如下：

IDS pH electrodes with universal plug head – digital & wireless ready

Digital measurement of pH with built-in electrode quality monitoring - usable in all areas of the wireless lab, field and depth profile measurement

Safely measured values due to signal processing in the sensor

Easy electrode replacement thanks to calibration data stored inside sensor

Sensor quality monitoring by QSC function

pH electrodes are the most frequently used electro-chemical sensors. They are used practically in all areas of lab and field measurement. At the same time, the deliver the most sensitive measuring signals and must be serviced and calibrated at regular intervals.

This is exactly where the concept of IDS sensors comes in. Digital data transfer is safe against interference, allows the use of long cables and permits important additional information such as calibration data and sensor recognition.

WTW offers a wide variety of IDS pH electrodes for field use, all the way to special applications in the lab. The QSC function allows monitoring of the current sensor status with all IDS pH electrodes.

WTW's proven pH electrodes are now available as sustainable plug head versions. The universal plug head fits the sensor with wireless functionality – disturbing cables are no longer required.

Furthermore it can be connected to AS/IDS-x cables with lengths of up to 100 m. With this new technology WTW significantly expands the range of applications and the measuring comfort of its pH electrodes.

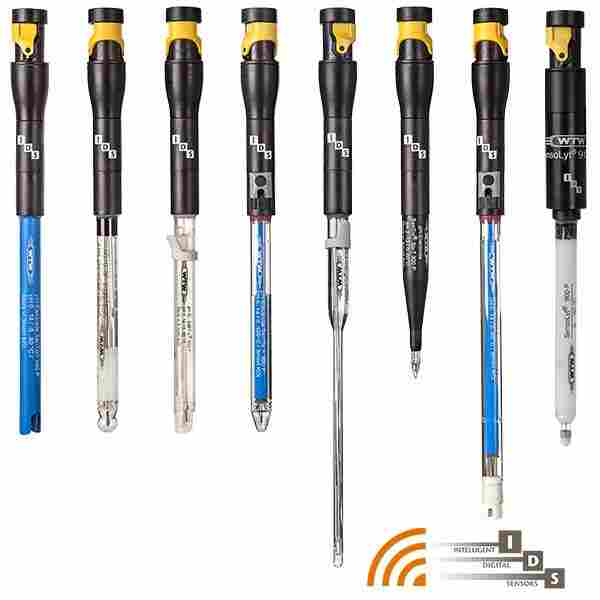

Variations

Model		Deion
pH electrodes for special applications	_H	_H
SenTix ® 945-P	Low-maintenance IDS pH gel electrode with glass shaft, three diaphragms and plug head	103764
SenTix ® 950-P	IDS electrode with 3 mol/l KCl, plastic shaft and plug head	103761
SenTix ® HW-T 900-P	IDS pH electrode with adjustable split ring junction diaphragm and plug head	103767
pH electrodes with liquid electrolyte	_H	_H

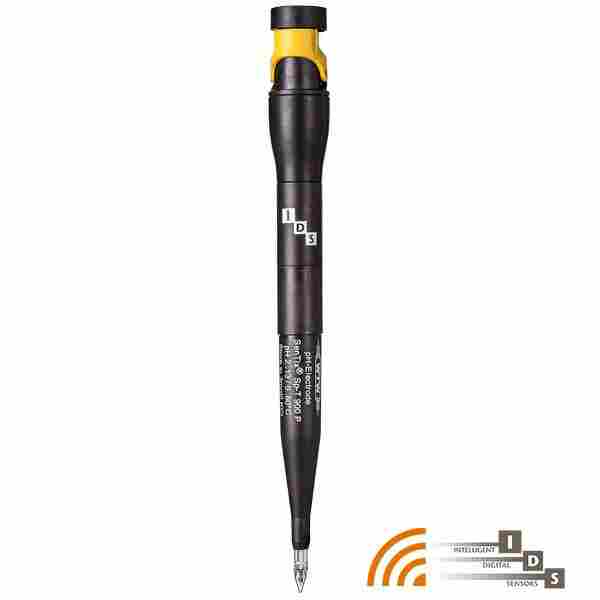

SenTix ® Sp-T 900-P	IDS insertion electrode with polymer electrolyte and plug head	103766

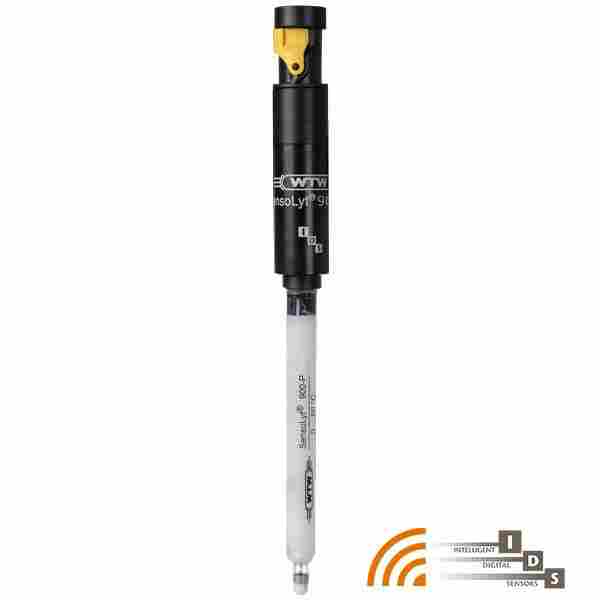

SensoLyt ® 900-P	Pressure-resistant electrode (10 bar) for MPP and field use with plug head	103748
SenTix ® 940-P	Low-maintenance IDS pH gel electrode with plug head	103760
pH electrodes with gel electrolyte	_H	_H
SenTix ® 980-P	IDS electrode with 3 mol/l KCl, glass shaft, platinum diaphragm and plug head	103762
SenTix ® Micro 900-P	IDS micro pH electrode with platinum diaphragm and plug head	103765

Technical Data

				SenTix® 940-P
Shaft:	_H	_H	_H	_H
Diameter	12 mm	12 mm	12 mm	12 mm
Diaphragm	Fiber	3 x ceramic	Ceramic	Platinum wire
Operating range Temp.	0 … 80 °C	0 … 80 °C	0 … 80 °C	0 … 100 °C
Membrane shape	Cylinder	Spherical	Cylinder	Conical
Reference electrolyte	Gel	Gel	KCl 3 mol/l	KCl 3 mol/l
Length	120 mm	120 mm	120 mm	120 mm
Measuring range pH	0.000 … 14.000 ±0.004	0.000 … 14.000 ±0.002	0.000 … 14.000 ±0.004	0.000 … 14.000 ±0.004
Material	Plastic	Glass	Plastic	Glass
Note: The accuracy of the pH value refers to the electronic measuring equipment used in the electrode!	_H	_H	_H	_H

				SenTix® Micro 900-P
Membrane shape	Cylinder	Spear	Cylinder	Cylinder
Length	70/130 mm	65/25 mm	120 mm	120 mm
Diameter	12/5 mm	15/5 mm	12 mm	12 mm
Diaphragm	Platinum wire	Hole	Split ring	Hole
Measuring range pH	0.000 … 14.000 ±0.002	2.000 … 13.000 ±0.002	0.000 … 14.000 ±0.002	2.000 … 12.000 ±0.004
Material	Glass	Plastic	Glass	Glass
Shaft:	_H	_H	_H	_H
Reference electrolyte	KCl 3 mol/l	Polymer	KCl 3 mol/l	Polymer
Operating range Temp.	0 … 100 °C	0 … 50 °C	0 … 60 °C	0 … 60 °C
Note: The accuracy of the pH value refers to the electronic measuring equipment used in the electrode!	_H	_H	_H	_H

Matching and supplemental products

inoLab® Multi 9630 IDS

inoLab® Multi 9620 IDS

inoLab® Multi 9310 IDS

MultiLine® 3630

MultiLine® 3620

MultiLine® 3510

IDS depth probes

Initial calibration set

Technical buffering solutions (buffer bottles)

Standard (DIN/NIST) bufferin solutions (buffer bottles)

Assortments work reference buffering solutions

Calibration and maintenance assortments

Electrolytes and cleaning solutions

Arming for IDS sensors

Accessories

Model		Deion
AS/IDS-10	Like above, 10 m	903853
WLM-Charger	USB charger for wireless modules	108143
IDS WLM-M	Wireless module for IDS meter	108142
AS/IDS-6	Like above, 6 m	903852
A 925-P/S	Arming for IDS –P sensors with protective basket made of stainless steel	903840
A 925-P/K	Arming for IDS –P sensors with protective basket made of POM	903839
D 3Sen	Flow vessel for field measurements	903842
AS/IDS-100	Like above, 100 m	903859
A 925-P	Replacement head with existing protective basket	903838
AS/IDS-15	Like above, 15 m	903854
AS/IDS-1.5	Connecting cable for MPP IDS as well as plug head sensors, length 1.5 m	903850
A pHLab/K	Plastic arming for SenTix ® IDS pH electrodes	903841
pH cap	Replacement watering cap for SenTix® pH electrodes (12 mm shaft)	108065
AS/IDS-40	Like above, 40 m	903857
IDS WLM Kit	Kit consisting of wireless module for sensor and meter (one of each), USB charger and universal USB power supply	108144
AS/IDS-25	Like above, 25 m	903856
AS/IDS-20	Like above, 20 m	903855
NT USB Universal	Universal USB power supply	902872
IDS WLM-S	Wireless module for plug head sensor	108141
AS/IDS-3	Like above, 3 m	903851
AS/IDS-60	Like above, 60 m	903858

Downloads

Product brochure IDS wireless modules "Free and connected – IDS goes Wireless!" (4 pages) 447 K

Product brochure IDS depth probes "Profile Measurement with IDS Multi-parameter Sondes" (4 pages) 476 K
