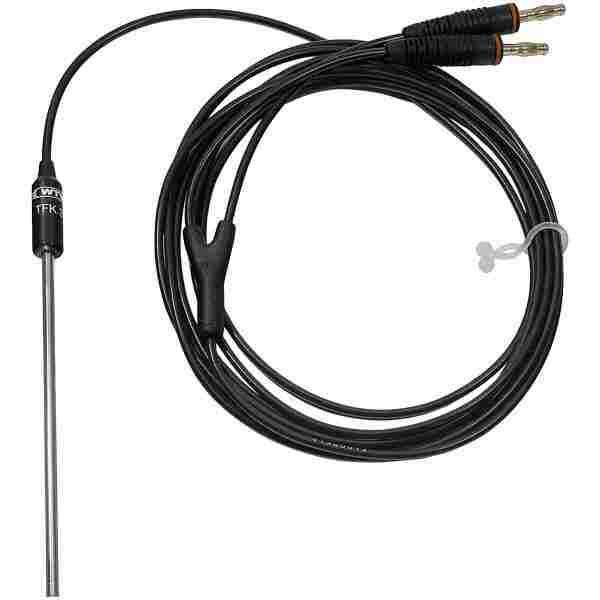

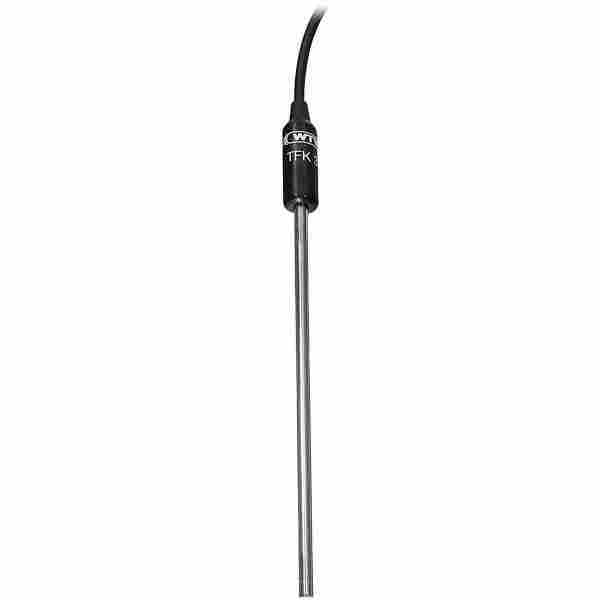

Temperature sensor (for pH/ORP/ISE measurement)


Temperature sensors with built-in NTC 30 kOhm - prerequisite for precise results for pH, ORP and ISE measurements
Precise temperature measurement
Waterproof connection
Models for different applications available
pH and ORP measurements must always have a temperature indication. During pH measurement, the indication of a temperature to compensate the temperature effect, and the documentation, with ORP measurement, only for documentation purposes. During ISE measurement it is important that the calibration and the measurement are performed in the same temperature range. Temperature sensors by WTW are used with pH and ORP electrodes that do not have their own temperature sensor. The temperature sensors are equipped with two 4 mm banana plugs.
Variations
| Model | De |
Order no. | |||
|---|---|---|---|---|---|
| TFK 150 | Coated temperature sensor, 1 m cable | 102269 | |||
| TFK 325-3 | Stainless steel temperature sensor, 3 m cable | 102282 | |||
| TFK 150-1,5 | Coated temperature sensor, 1.5 m cable | 102270 | |||
| TFK 325-EST-3,0 | TFK for pipe installation, R ½ inch NPT thread and welding socket, 3 m cable | 102287 | |||
| TFK 325-EST | TFK for pipe installation, R ½ inch NPT thread and welding socket | 102281 | |||
| TFK 325/HC | Stainless steel temperature sensor, holding clip | 109818 | |||
| HC 325 | Holding clip for electrode | 109821 | |||
| TFK 325 | Stainless steel temperature sensor | 102280 | |||
| TFK 325/HC-3 | Stainless steel temperature sensor, holding clip, 3 m cable | 109823 | |||
| TFK 150/E | Spear type temperature sensor | 102269 | |||
Technical Data
| Type | Precision temperature sensor |
| NTC | 30 kOhm at 25 °C |
| Temperature range | 0 .. 212.00 ℉ |
Matching and supplemental products
Accessories
Downloads
