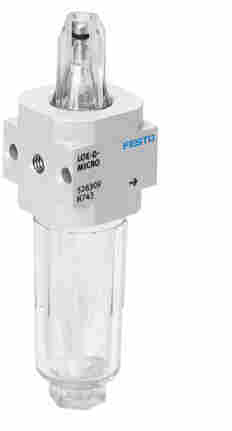

FESTO油雾器带连接板,LOE-QS6-D-MICRO
油雾器LOE-QS6-D-MICRO
产品代号: 526314
带插入式接头的连接板
通过在搜索字段中输入型号代码的前四个字符，可以找到新的替代产品
尺寸 Micro型
系列 D
装配位置 垂直 +/- 5°
设计结构 比例式标准油雾器
大储油能力 6.5 cm3
工作压力 1 ... 10 bar
油雾器起作用所需的小流量 3 l/min
标准额定流量 330 l/min
耐腐蚀等级 CRC 2 – 中等腐蚀影响
储藏温度 -10 ... 60 °C
输出口的空气纯净度 压缩空气符合ISO8573-1:2010 [7:4:-]惰性气体
介质温度 -10 ... 60 °C
环境温度 -10 ... 60 °C
产品重量 59 g
安装类型 可选线路安装带附件
气动连接, 气口 1 QS-6
气动连接, 气口 2 QS-6
材料备注 符合 RoHS
材料信息，壳体 压铸铝
材料信息，碗 PC
