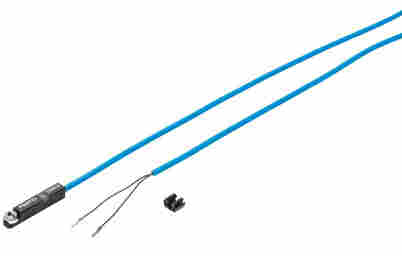

气缸磁性行程开关,SMT-8F-I-8,2V-K5,0-OE-EX
Festo气缸磁性行程开关SMT系列
接近开关SMT-8F-I-8,2V-K5,0-OE-EX
产品代号: 536956
电子非接触式，NPN, 双线Namur设计, 用于带T型槽的驱动器, 从顶部安装, 带电缆.
设计 用于T-槽
符合标准 EN 60947-5-6
RCM Mark
CE 符号 (参见符合的标准) 根据 EU-EMV 指导原则
根据 EU-Ex 防爆指导原则 (ATEX)
ATEX 类气体 II 1G
燃爆防护型气体 Ex ia IIC T4...T6 Ga
ATEX 类粉尘 II 1D
燃爆防护型粉尘 Ex ia IIIC T95°C Da
符合防爆要求的环境温度 -10°C <= Ta <= +70°C
签发部门 KEMA 04 ATEX 1114 X
材料备注 不含有黄铜和PTFE
测量原则 磁场感应
环境温度 -25 ... 70 °C
开关输出 NAMUR
切换元件功能 NAMUR
切换值的重复能力 +/- 0,1 mm
开启时间 <= 0.5 ms
关闭时间 <= 0.5 ms
Namur 操作模式时的大输出电流 4.5 mA
剩余电流 < 0.7 mA
短路强度 对于所有的电接口
额定工作电压DC 8.2 V
极性容错保护 对于所有的电接口
电连接 电缆 2芯
电缆长度 5 m
材料信息，电缆护套 PVC
安装类型 夹在 T-槽中
装配位置 任意
产品重量 70 g
材料信息，壳体 PA
工作状态显示 黄色 LED
采用弹性电缆安装时的环境温度 -5 ... 70 °C
防护等级 IP65，IP67
