FESTO连接电缆带套筒螺母,KVI-CP-3-WS-WD-8
KVI-CP-3-WS-WD-8
KVI-CP-3-WS-WD-2

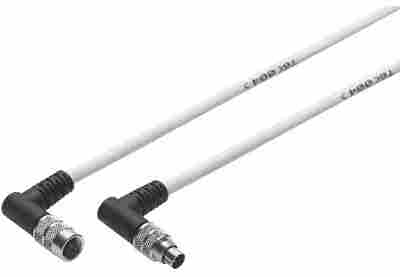

连接电缆KVI-CP-3-WS-WD-8
产品代号: 540331
安装类型 带套筒螺母
装配位置 任意
产品重量 399.4 g
电接口 1 直角式插座, M9, 5-针
电接口 2 直角式插头, M9, 5-针
工作电压范围 DC 60 V
可接受的电流负载24传感器技术 1.6 A
可接受的电流负载24阀 1.6 A
电缆长度 8 m
电缆属性 适合于拖链
电缆的测试条件 测试条件根据需要而定
电缆直径 5.5 mm
电缆结构 2x0,25+2x0,34+0,49 已屏蔽
颜色编码, 缆芯绝缘 针脚 1 = 黄色
针脚 2 = 灰色
针脚 3 = 绿色
针脚 4 = 白色
针脚 5 = 棕色
防护等级 IP65 IP67
环境温度 -20 ... 80 °C
采用弹性电缆安装时的环境温度 -5 ... 80 °C
材料备注 符合 RoHS
耐腐蚀等级 CRC 1 – 低腐蚀影响
材料信息，电缆护套 TPE-U(PUR)
电缆外套颜色 淡灰色
材料信息，壳体 PA PBT TPE-U(PUR)
材料信息，联合螺母 镀镍黄铜
材料信息，电气触片 黄铜 / 黄铜镀金
