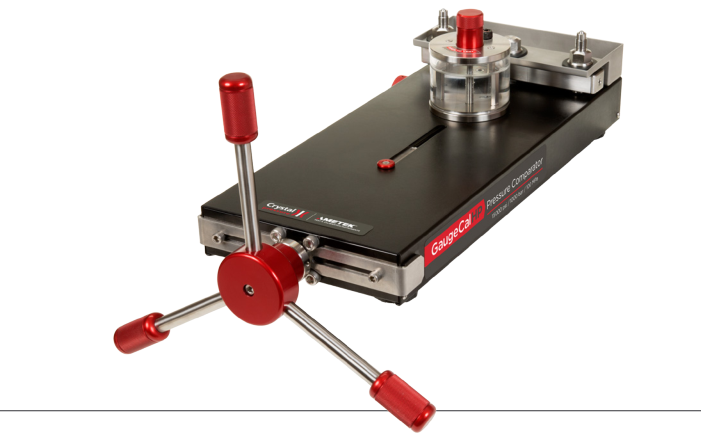

Thank you for purchasing a GaugeCalHP™ Pressure Comparator from Crystal Engineering. The GaugeCalHP is a self-contained, precision hydraulic pressure comparator intended for the calibration of pressure gauges rated up to 15 000 psi / 1000 bar / 100 MPa. You may fill the GaugeCalHP with your choice of water or oil.
Using this comparator for calibration is much faster than deadweight testers and most automated pressure controllers. The GaugeCalHP is so quick and easy to use, it is ideal for calibrating those low cost gauges that are often overlooked for ISO9000 compliance.

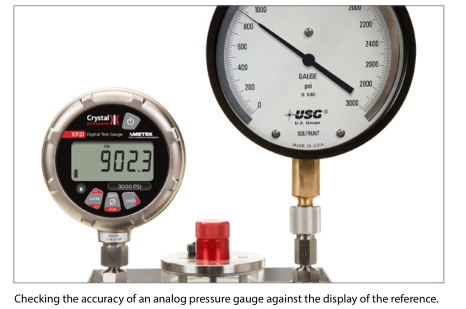

In fact, you can calibrate most gauges, transmitters, pressure safety valves, sensors, and switches in less than ten minutes (5 to 10 test points, increasing and decreasing pressure) using the methods described in this manual.
The GaugeCalHP hydraulic comparator may be ordered as part of a Pump System, complete with a Crystal Pressure Indicator. GaugeCalHP Pump Systems include the most commonly used pressure fittings, seals, etc. All packaged in a carrying case with custom insert.
Spend a few minutes to read this manual and learn how you can get the most benefit from your GaugeCalHP.
ShenZhen BANGYA Electronics Co.,Ltd.
Tel: 86-755-86381712
http://www.bangya.cn

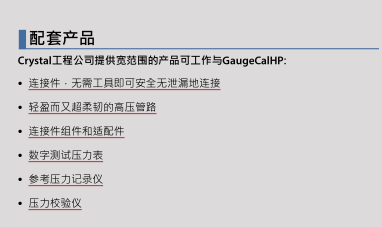

GaugeCalHP压力比较仪配套产品：

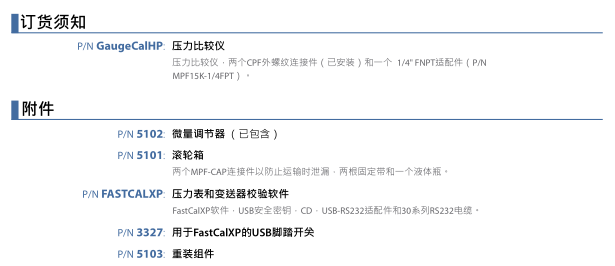

GaugeCalHP压力比较仪产品附件：
GaugeCalHP压力比较仪产品应用领域：
应用于电力、冶金、石化、医药、水利、航空、计量、气象、环保、自动化等部门和科研单位。
GaugeCalHP压力比较仪产品简介：
GaugeCalHP是一台精密压力比较仪，用于校准额定压力从真空至100MPA的压力仪表，可以选择油或水作为压力介质，以空气作为介质还可进行微压校准。
使用GaugeCalHP压力比较仪可以方便快捷对压力表，压力（差压）变压器，压力传感器，压力开关，压力安全阀进行校准，10分钟即可完成5至10个测试点的增压减压的校准工作。
GaugeCalHP压力比较仪产品主要特点：
·宽量程：气压至99.5KPA，液压至100MPA，并可产生真空；
·多种介质：空气，油，水；
·标准微调阀：整个量程内均可进行精密调节；
·可拆式螺旋手柄：加减压均匀顺畅，携带方便；
·安装支架：可固定于工作台；
·透明介质容器：清晰，可拆卸，刻度线显示，容器旋钮可排除系统内残留气体；
·积液托盘：可以容纳溢出的液体，使其保持清洁；
·多通接头：可带压旋转，方便校准大直径压力表；
·CPF基座溢出孔：安全释放压力，系统排空；
·pelican便携箱（可选）：带滚轮和拉杆，方便携带，并可作为现场工作台。

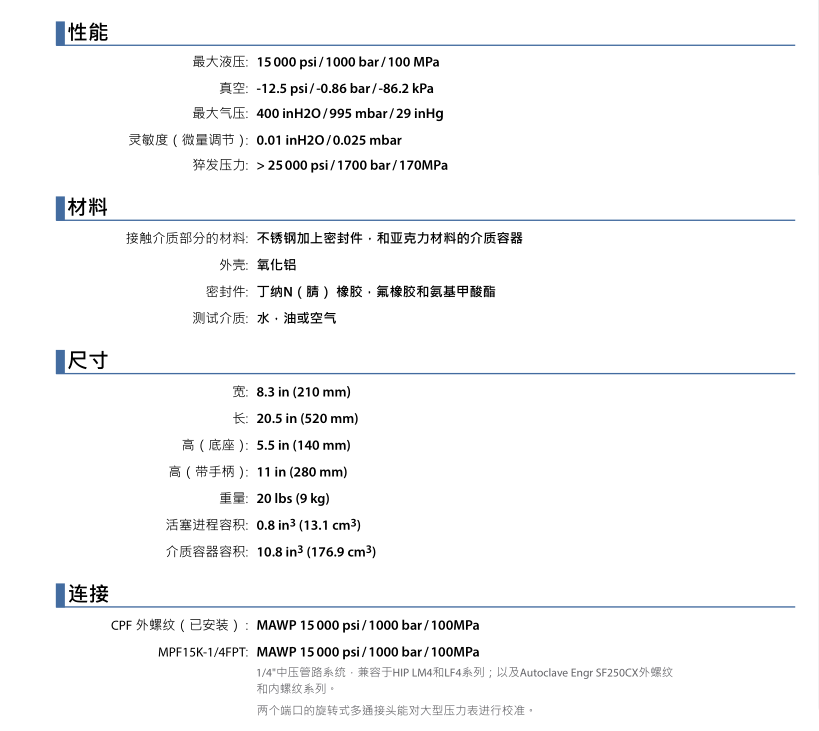

GaugeCalHP压力比较仪产品技术指标：
