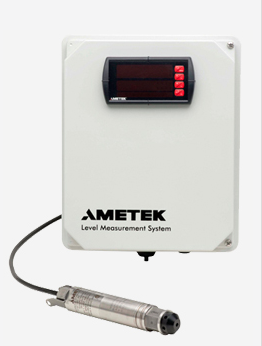

De The AMETEK LEVEL MATE III Level System uses a stainless steel transmitter as standard. A series of perforations in the bottom of the unit protects the sensing port from either clogging or damage. The same snub-nosed end can also unscrew, allowing for easy calibration checks. The customized LEVEL MATE III meter displays data from the transmitter, provides excitation voltage and transmits an analog signal for remote recording, alarm or control functions. It is easy to calibrate by front panel adjustments. Its programmable relay permits set and reset programming. The large, easy-to-read LED display gives local indication while the optional isolated analog output can interface with ancillary display, recording or control devices. Combined into one convenient package, the AMETEK LEVEL MATE III Level System provides you with the most versatile level measurement system on the market! |
View the Level Mate III Video
银飞电子主要销售通信设备、仪器仪表、电力设备、热工仪表、校准设备及工具配件。有多功能多产品校准器、电能功率校准器、活塞式压力计（气体、高压、液体、真空）、多功能电气安全校准器、示波器、频率计、万用表、阻抗分析仪、功率计、LCR数字电桥、音频分析仪、电容测试仪、电感测试仪、安规测试仪、直流电阻测试仪、网络分析仪、频谱仪、任意波形发生器、温度校准仪、数字测温仪、信号发生器、电源、电子负载、综合测试仪、信号源、滤波器测试仪、材料试验机、温度传感器、热像仪、变压器测试仪、噪声源、视频分析仪、过程校准仪、温度巡检仪、级测温电桥、黑体炉、射频导纳物位开关、多点物位开关、音叉开关、射频导纳连续物位计、雷达液位计、超声波液位计、油中水含量分析仪、液位测量系统、磁致伸缩液位计、非接触固体雷达、压力传感器、过程表、压力变送器、气动控制器、高纯压力开关、隔膜片、冲液表、计量表膜片密封、材料实验机、食品质构仪、硬度实验机、数字测力计、PETPLUS特性粘度仪、布氏光学扫描系统、洛氏布硬度实验机、全自动显微硬度试验机、布氏硬度试验机、电动试验平台、单柱材料试验系统、双柱材料试验系统、浮球活塞压力计、船用温度压力校验仪、点位测量系统、超声波开关、油/水界面开关、在线流体检测开关、多点开关、平板开关、浮顶罐溢出保护开关、静电放电干扰模拟器、雷击浪涌干扰模拟器、周波跌落模拟器、辐射抗扰度系统、脉冲群干扰模拟器、传导抗扰度测试系统、传导骚扰测试系统、辐射骚扰测试系统等仪器。
公司：深圳市银飞电子科技有限公司
Specifications
Ranges
Feet of Water: 0 to 14, 0 to 35, 0 to 69, 0 to
138, 0 to 230, 0 to 345, 0 to 460, 0 to 690
Meters of Water: 0 to 4, 0 to 10, 0 to 21, 0
to 42, 0 to 70, 0 to 105, 0 to 140, 0 to 21
Transmitter Temperature Ranges
Max. Operating: -40° to 82°C (-40° to 180°F); media must not freeze
Compensated: -5° to 55° C (23° to 130°F)
Temp. Effects: Typical ±1% output change for ±25° C temp. change within compensated range when calibrated at 25°C
Accuracy: ±0.25% full scale (including linearity, hysteresis, repeatability) B.F.S.L
Transmitter Output
4 to 20mADC, limited to 30 mADC
Transmitter Power Supply
24 VDC from meter
Transmitter Electrical Connection
Attached #20 AWG polypropylene insulated and shielded conductors in a black polyurethane jacket. Unspliced lengths to 3000 ft. (1622 m)
Meter Housing Construction
Fiberglass reinforced polyester
Transmitter Cable Color Code
RED (+) excitation
BLACK (-) excitation,
GREEN (caseground).
Transmitter Construction
Diaphragm: Type 316L stainless steel
Housing Type: 316 stainless steel
Nut/Washer Type: 316 stainless steel
Cable Grommet: Viton
Meter Display
LED Display
Upper Display: 0.60” (15mm) high
Lower Display: 0.46” (12mm) high
Both displays 6 Digits (-99999 to 99999)
Meter Input Voltage
85 to 265 VAC @ 50/60 Hz, 90-265 VDC,
20 W max
Meter Ranges
Calibrated to transmitter range in psi, inches, feet, meters of water, or other desired engineering units -9999 to 99999.
Meter Temperature Ranges
Operating: -40° to 65° C (-40° to 150°F)
Storage: -40° to 85°C (-40° to 185°F)
Meter Output
Isolated 4-20 mA.
While the output is nominally 4-20 mA, the signal will accurately accommodate under and over ranges from 1 to 23 mA.
Meter Relay Outputs
N.O.
Form C (SPDT) relays rated 3 A @ 30 VDC and 125 / 250 VAC resistive load.
